L314KEC

LED Indication - Discrete Overview

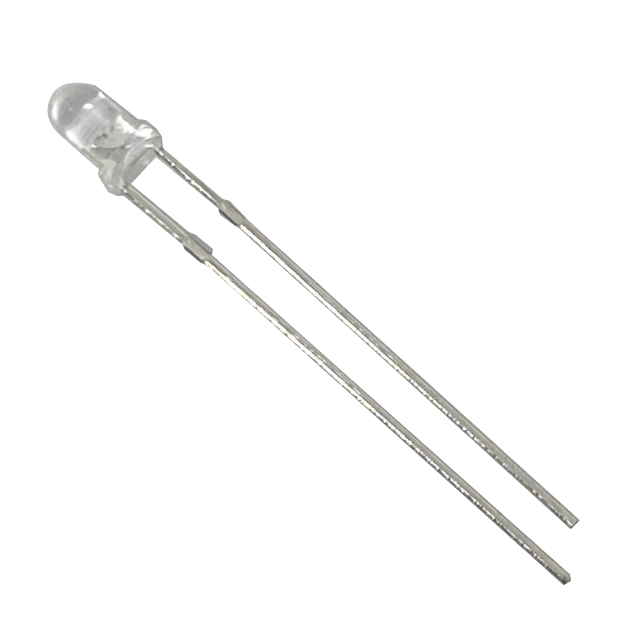

The L314KEC is a 3mm diameter red LED lamp manufactured by American Opto Plus LED. It operates at a wavelength of 635nm and is designed for discrete indication applications. The component features a diffused lens to provide a consistent visual signal. It is RoHS compliant and lead-free, adhering to environmental standards for electronic components.

LED Indication - Discrete Feature Summary

• Provides clear red visual indication with a 635nm wavelength
• Features a 3mm diameter form factor suitable for panel mounting
• Utilizes a diffused lens for uniform light distribution

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power state signaling
• General purpose visual alerts

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number L314KEC against official American Opto Plus LED documentation to ensure authenticity. Confirm RoHS compliance status and package dimensions match project requirements before procurement. Request datasheets directly from authorized channels to validate technical specifications.

LED Indication - Discrete Selection Notes

Select this component when a standard 3mm red indicator is required for panel mounting. Ensure the application voltage and current limits align with the LED's forward voltage characteristics. Consider the diffused lens type if uniform visibility is necessary rather than a focused beam.

LED Indication - Discrete Part Context

This part belongs to the LED Indication - Discrete category within the American Opto Plus LED portfolio. It is a through-hole axial leaded component commonly used in industrial and consumer electronics for simple on/off status visualization. The 3mm size offers a balance between visibility and board space efficiency.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 3mm red diffused LEDs from American Opto Plus LED or compatible manufacturers. Verify pinout compatibility and electrical parameters such as forward voltage and peak forward current before substitution.
