LCMXO2-4000ZE-3QN84I

Field Programmable Gate Array Overview

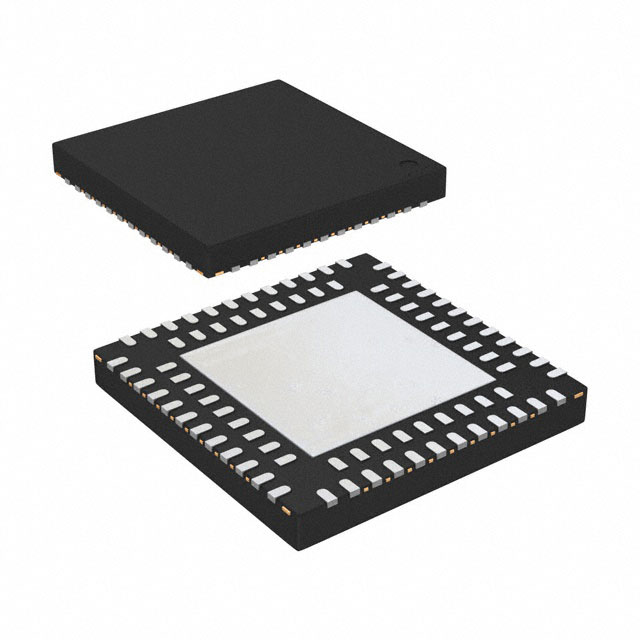

The LCMXO2-4000ZE-3QN84I is a Field Programmable Gate Array (FPGA) from the Lattice MachXO2 family, manufactured by Lattice Semiconductor Corporation. It features 4320 logic elements and 2160 Adaptive Logic Modules (ALMs). The device includes 92 kbit of embedded memory and provides 68 I/O pins. It operates within a supply voltage range of 1.14 V to 1.26 V and supports a maximum operating frequency of 150 MHz. The component is housed in an 84-VFQFN package with exposed pads and functions across a temperature range of -40°C to +100°C.

Field Programmable Gate Array Feature Summary

• Integrates non-volatile flash-based technology for instant-on functionality without external configuration memory.
• Utilizes low-power CMOS process architecture designed for energy-efficient operation in portable applications.
• Supports multiple I/O standards including LVCMOS, LVTTL, and LVDS for flexible interface compatibility.

Field Programmable Gate Array Applications

• Industrial control systems requiring reliable programmable logic
• Consumer electronics with space-constrained designs
• Automotive infotainment and display interfaces

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'ZE' indicates commercial temperature grade and speed bin during procurement. Confirm the QFN-84 package dimensions match the design footprint. Check RoHS compliance status as indicated in official documentation. Ensure ESD handling procedures are followed due to moisture sensitivity level 3 classification.

Field Programmable Gate Array Selection Notes

Select this model when 4320 logic resources and 68 I/Os are required in a compact QFN-84 form factor. Choose the ZE variant for commercial temperature ranges (-40°C to +100°C) and 1.2V core voltage. Compare against HC variants if higher performance speeds or different voltage levels are needed instead of low power optimization.

Field Programmable Gate Array Part Context

This part belongs to the Lattice MachXO2 series, which focuses on low-power, small-footprint FPGA solutions. The MachXO2 family is known for its high-density logic in small packages, targeting cost-sensitive and power-constrained markets. It serves as a successor to earlier CPLD technologies while offering greater flexibility.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements within the same package and logic density may include other LCMXO2-4000ZE variants with different speed grades or temperature ratings. Verify electrical characteristics and timing constraints before substituting with HC series parts, as voltage requirements differ significantly.
