LDFL012202V6-V0E

Common Mode Chokes Overview

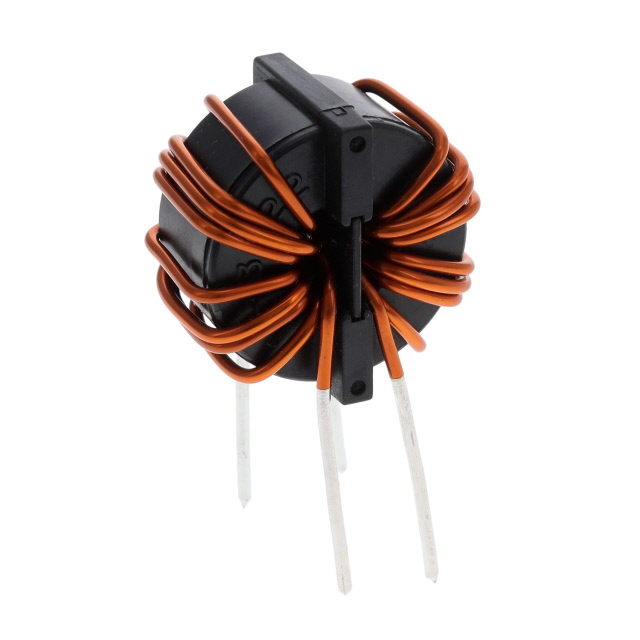

The LDFL012202V6-V0E is a toroidal common mode choke coil from the FL-V series manufactured by Chemi-Con. It features a 2 mH inductance and supports a maximum DC current of 12 A with a minimum DC resistance of 7.5 mOhms. The component has a diameter of 31.00 mm (1.220 inches) and operates within a temperature range starting at -40°C. Designed for through-hole mounting, it provides noise suppression in high-frequency applications while maintaining low power loss and minimal stray capacitance.

Common Mode Chokes Feature Summary

• Toroidal core design for efficient magnetic flux containment
• Low DC resistance to minimize power loss
• Minimal stray capacitance for high-frequency noise suppression
• Lightweight construction

Common Mode Chokes Applications

• Three-phase EMI filter circuits
• High-frequency noise suppression systems
• Power line filtering applications

Common Mode Chokes Procurement Notes

Verify the exact datasheet version before procurement as specifications may vary. Confirm that the through-hole mounting style matches your PCB layout requirements. Ensure the 12 A current rating and 2 mH inductance meet your circuit's electrical demands. Check for RoHS compliance status if required by your manufacturing standards. Validate the operating temperature range against your environmental conditions.

Common Mode Chokes Selection Notes

Select this component when low DC resistance and minimal stray capacitance are critical for high-frequency performance. The 12 A current rating suits applications requiring substantial current handling. Consider the 31.00 mm diameter for available board space. The toroidal shape offers compactness compared to other core types. Verify compatibility with three-phase systems if used in EMI filters.

Common Mode Chokes Part Context

This part belongs to the FL-V series of toroidal common mode chokes. The series is characterized by low resistance and lightweight design. It is distinct from radial SMD capacitors like the MVA63VC101MK14TR. The FL-V series targets noise suppression where minimal stray capacitance is essential. It serves as a passive component in power electronics.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer guidelines for potential alternatives if this specific model is discontinued or unavailable. Ensure any replacement matches the 2 mH inductance and 12 A current rating.
