LDFL012282VD-V0E

Common Mode Chokes Overview

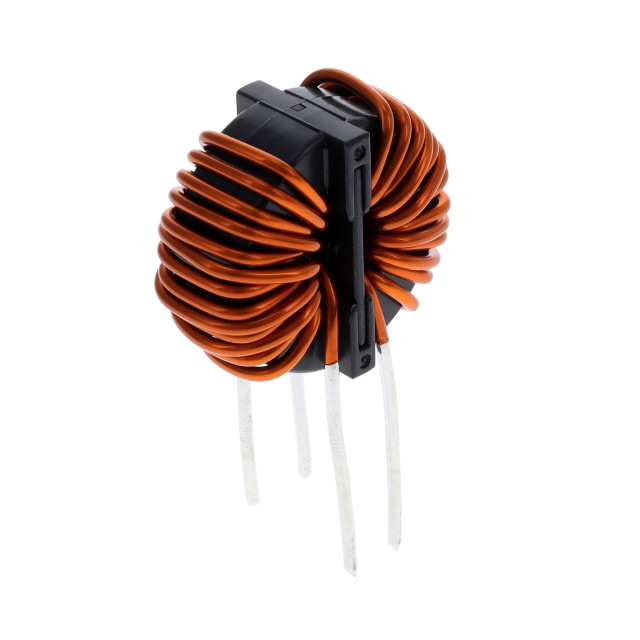

The LDFL012282VD-V0E is a nanocrystalline common mode choke coil manufactured by Chemi-Con. It features an inductance of 6.2 mH at 10 kHz and 2.8 mH at 100 kHz, with a rated current of 12 A and a DC resistance of 9.5 mΩ. The component supports a maximum voltage of 250 VDC and operates within a temperature range of -40 °C to 130 °C. Designed for through-hole mounting, it measures 27 x 31 x 17.5 mm and complies with the AEC-Q200 automotive qualification standard.

Common Mode Chokes Feature Summary

• Utilizes nanocrystalline core technology for high-performance common mode noise suppression
• Automotive-grade reliability certified under the AEC-Q200 standard
• Supports high current handling capabilities up to 12 A
• Wide operating temperature range suitable for demanding thermal environments

Common Mode Chokes Applications

• Automotive power supply circuits requiring EMI filtering
• On-board charger systems for electric vehicles
• High-reliability industrial power electronics
• Inverter input/output stages in automotive applications

Common Mode Chokes Procurement Notes

Verify the complete part number including suffixes to ensure correct specifications. Confirm that the required inductance values at specific frequencies match your circuit design needs. Ensure the physical dimensions fit within the designated PCB footprint. Check for any specific packaging requirements or handling instructions provided in the official datasheet before placing orders.

Common Mode Chokes Selection Notes

Select this component when high current capacity and robust EMI suppression are required in space-constrained automotive designs. The nanocrystalline core offers superior performance compared to traditional ferrite cores at higher frequencies. Consider the 12 A rating and low DC resistance for efficiency-critical power paths. Verify compatibility with the target voltage level of 250 VDC.

Common Mode Chokes Part Context

This component belongs to the FL-V series of nanocrystalline common mode chokes from Nippon Chemi-Con. The series is specifically engineered for automotive applications, emphasizing high reliability and thermal stability. These chokes are designed to replace bulkier traditional filters while providing effective noise reduction in compact power modules.

Common Mode Chokes Replacement Considerations

Consult official substitution lists for compatible alternatives. Ensure any replacement matches the 2.8 mH inductance at 100 kHz and 12 A current rating. Verify that substitute components also meet AEC-Q200 standards if automotive use is intended. Physical dimensions must be compatible with existing board layouts.
