LE910C1NF13T137200

RF Transceiver Modules And Modems Overview

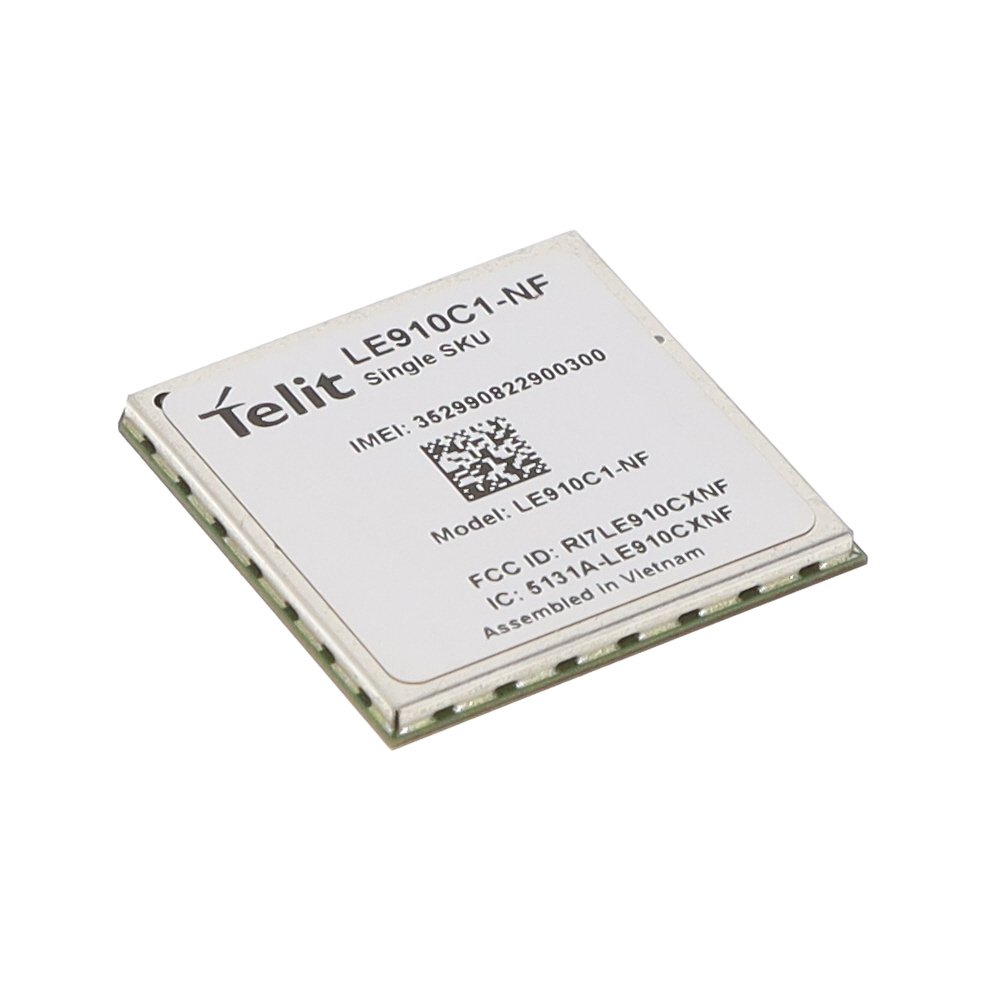

The Telit Cinterion LE910C1NF13T137200 is an LTE Cat-1 RF transceiver module designed for North American cellular networks, specifically supporting AT&T, Verizon, and T-Mobile. It integrates multi-constellation GNSS positioning capabilities including GPS, GLONASS, BeiDou, Galileo, and QZSS for precise location tracking. The module operates within a supply voltage range of 3.1 VDC to 4.2 VDC, with a typical operating voltage of 3.8 VDC. It features a compact surface-mount form factor measuring 28.2 mm x 28.2 mm x 2.2 mm. Key electrical specifications include a maximum output power of 23 dBm and data rates up to 150 Mb/s. The device supports standard interfaces such as UART and USB, ensuring compatibility with various host systems.

RF Transceiver Modules And Modems Feature Summary

• Supports LTE Cat-1 connectivity across major North American carriers including AT&T, Verizon, and T-Mobile.
• Integrates multi-constellation GNSS positioning for accurate location services using GPS, GLONASS, BeiDou, Galileo, and QZSS.
• Provides high-speed data transmission capabilities suitable for IoT applications requiring moderate bandwidth.
• Features a compact SMD package design optimized for space-constrained embedded systems.

RF Transceiver Modules And Modems Applications

• Asset tracking and fleet management solutions requiring global positioning and cellular connectivity.
• Industrial IoT devices needing reliable LTE communication in North American regions.
• Smart metering and utility monitoring equipment.
• Wearable technology and personal safety devices with location awareness.

RF Transceiver Modules And Modems Procurement Notes

Verify carrier-specific certification status for target markets, particularly AT&T, Verizon, and T-Mobile network approvals. Confirm GNSS antenna integration requirements and interface compatibility with the host processor. Check current production status and lead times as availability may vary. Ensure proper thermal management and power supply filtering are implemented according to the datasheet recommendations for stable operation.

RF Transceiver Modules And Modems Selection Notes

Choose this module when LTE Cat-1 performance is sufficient and multi-carrier North American support is required. Consider it for applications needing integrated GNSS without external receivers. Evaluate against higher-category LTE modules if future-proofing for increased data throughput is necessary. Compare pinout and interface options with existing designs to ensure seamless integration into the PCB layout.

RF Transceiver Modules And Modems Part Context

This component belongs to the LE910Cx series of cellular modules from Telit Cinterion, which offers a range of LTE Cat-1 solutions for global markets. The series is designed to provide scalable connectivity options for IoT developers. Variants within the series differ by regional certifications, supported bands, and interface configurations. This specific part number targets the North American market with dedicated carrier approvals and integrated navigation capabilities.

RF Transceiver Modules And Modems Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Telit Cinterion resources for end-of-life notifications or recommended alternatives. Cross-referencing with other LE910Cx variants may be necessary if specific band support or interface requirements change.
