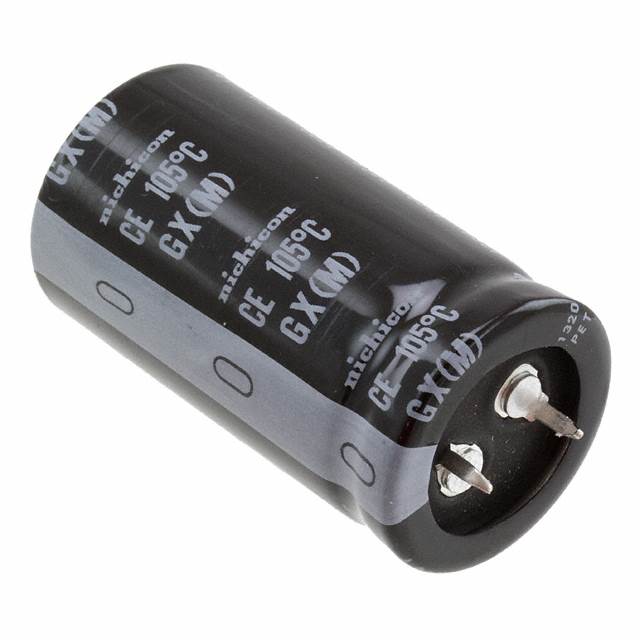

LGX2H151MELA45 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 150UF 20% 500V SNAP TH. Review the specifications below when checking this part for your BOM.
Aluminum Electrolytic Capacitors specifications for LGX2H151MELA45
- Description：CAP ALUM 150UF 20% 500V SNAP TH
- Series：LGX
- Mfr：Nichicon
- Package：Bulk
- Capacitance：150 µF
- Tolerance：±20%
- Voltage - Rated：500 V
- ESR (Equivalent Series Resistance)：-
- Lifetime @ Temp.：5000 Hrs @ 105°C
- Operating Temperature：-25°C ~ 105°C
- Polarization：Polar
- Ratings：-
- Applications：General Purpose
- Ripple Current @ Low Frequency：1.08 A @ 120 Hz
- Ripple Current @ High Frequency：1.5444 A @ 50 kHz
- Lead Spacing：0.394" (10.00mm)
- Size / Dimension：0.984" Dia (25.00mm)
- Height - Seated (Max)：1.850" (47.00mm)
- Surface Mount Land Size：-
- Mounting Type：Through Hole
- Package / Case：Radial, Can - Snap-In
Aluminum Electrolytic Capacitors datasheet and documents for LGX2H151MELA45
