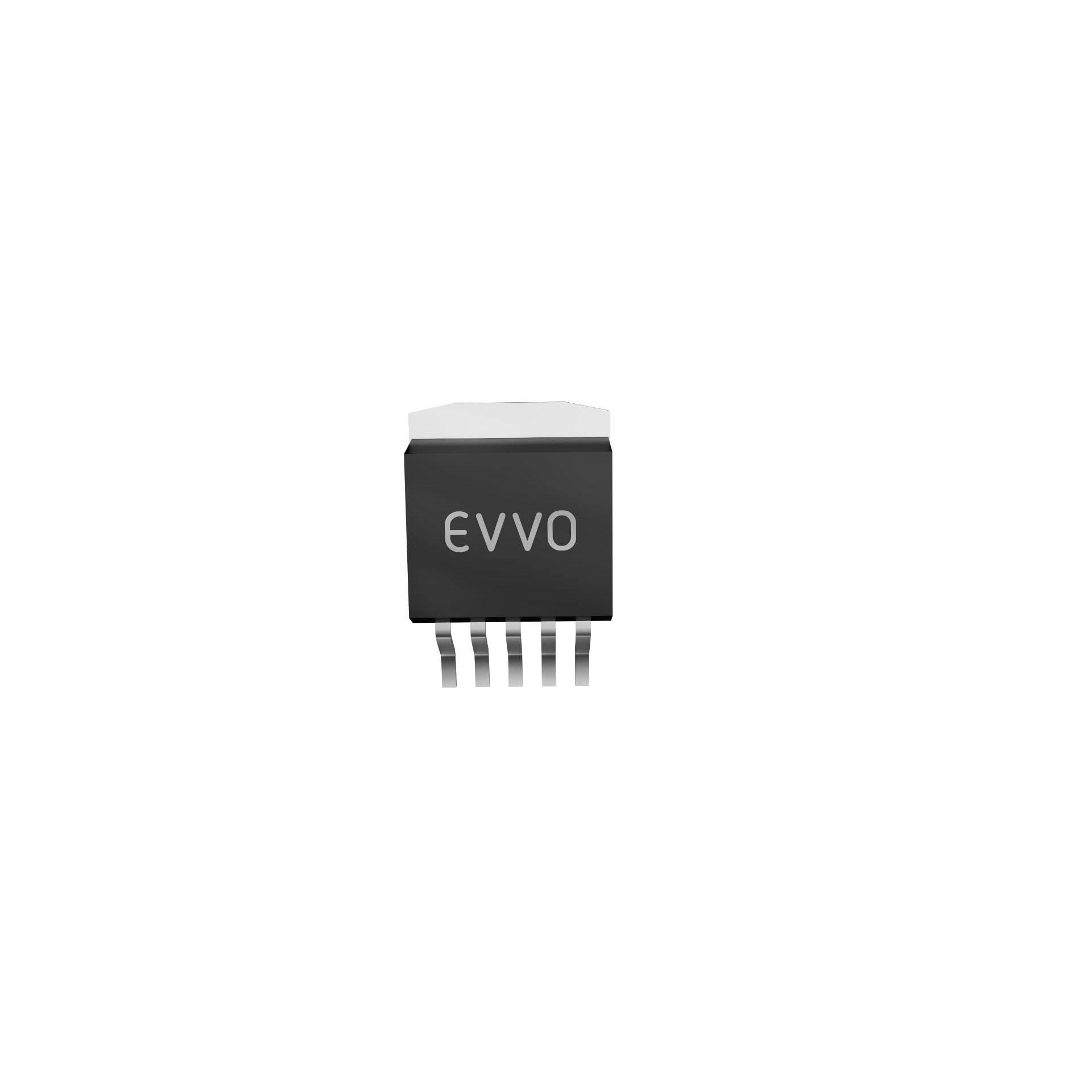

LM2575HVS-3.3-EV

$2.02

Description：IC REG BUCK 3.3V 2A TO263-5L
Series：LM2575HV
Mfr：EVVO
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2fb7a6cb5a84 Category: Voltage Regulators - DC DC Switching Regulators Brand: EVVO

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LM2575HVS-3.3-EV is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists EVVO. Its product description is IC REG BUCK 3.3V 2A TO263-5L. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for LM2575HVS-3.3-EV

Description：IC REG BUCK 3.3V 2A TO263-5L
Series：LM2575HV
Mfr：EVVO
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Fixed
Number of Outputs：1
Voltage - Input (Min)：-
Voltage - Input (Max)：57V
Voltage - Output (Min/Fixed)：3.3V
Voltage - Output (Max)：-
Current - Output：2A
Frequency - Switching：150kHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package：TO-263-5L
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for LM2575HVS-3.3-EV

LM2575HVS-3.3-EV

Voltage Regulators - DC DC Switching Regulators Overview

The LM2575HVS-3.3-EV is a fixed-output buck switching regulator IC manufactured by EVVO. It provides a stable 3.3V output with a maximum current capacity of 2A. The device supports an input voltage range up to 57V and operates at a switching frequency of 150kHz. It utilizes a TO-263-5L surface-mount package and functions within a junction temperature range of -40°C to 125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrated active functionality for step-down switching regulation
Fixed positive output configuration
High input voltage tolerance capability

Voltage Regulators - DC DC Switching Regulators Applications

General-purpose DC-DC conversion circuits
Embedded power supply systems
Industrial control modules

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the manufacturer designation as EVVO and confirm the specific suffix '-EV' matches the required component variant. Ensure the package type corresponds to TO-263-5L or D2PAK configurations. Cross-reference the RoHS3 compliance status if environmental regulations apply to the assembly process. Confirm availability through authorized distribution channels.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a fixed 3.3V output is required from higher input voltages up to 57V. The 2A output current rating suits moderate load applications. The 150kHz switching frequency allows for compact passive component selection compared to lower-frequency alternatives. Ensure thermal management strategies align with the TO-263-5L package's heat dissipation characteristics.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LM2575HV series, which are monolithic integrated circuits designed for buck converter topologies. The series typically includes variants for different fixed output voltages such as 3.3V, 5V, 12V, and 15V. These regulators are engineered to provide excellent line and load regulation performance for driving loads up to specified amperage limits.
