LM3708XQTP-308/NOPB

Supervisors Overview

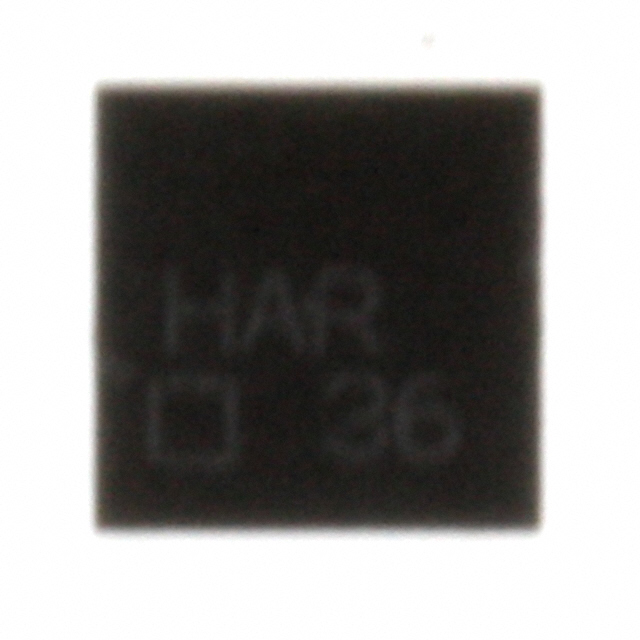

The LM3708XQTP-308/NOPB is a single-channel voltage supervisor manufactured by Texas Instruments. It features an active-low reset output with push-pull, totem pole configuration. The device monitors input voltage against a fixed threshold of 3.08V. It operates within a supply voltage range up to 5.5V and supports manual reset functionality. The component is housed in a 9-pin UFBGA package and is rated for operation between -40°C and +125°C.

Supervisors Feature Summary

• Provides reliable power monitoring with a fixed 3.08V threshold
• Features active-low reset output using push-pull topology
• Supports manual reset input for system control

Supervisors Applications

• MPU supervisory circuits
• Power management systems requiring voltage monitoring
• Embedded systems needing reset signal generation

Supervisors Procurement Notes

Verify the specific package type and pinout configuration against the official datasheet before integration. Confirm that the 3.08V threshold aligns with the target supply rail requirements. Ensure thermal management strategies account for the specified operating temperature range. Cross-reference the manufacturer part number to avoid counterfeit components.

Supervisors Selection Notes

Select this component when a single-channel supervisor with a precise 3.08V threshold is required. The push-pull output drives loads directly without external pull-ups. Consider the UFBGA package constraints for PCB layout. Verify compatibility with the system's manual reset logic if applicable.

Supervisors Part Context

This part belongs to the LM3708 family of voltage supervisors from Texas Instruments. It is designed for applications requiring accurate power sequencing and reset generation. The device integrates essential monitoring functions into a compact form factor suitable for space-constrained designs.

Supervisors Replacement Considerations

Check for direct substitutes within the LM3708 series with different thresholds or packages. Verify electrical compatibility regarding output drive strength and reset delay times before substitution.
