LNJ318C8PRA

LED Indication - Discrete Overview

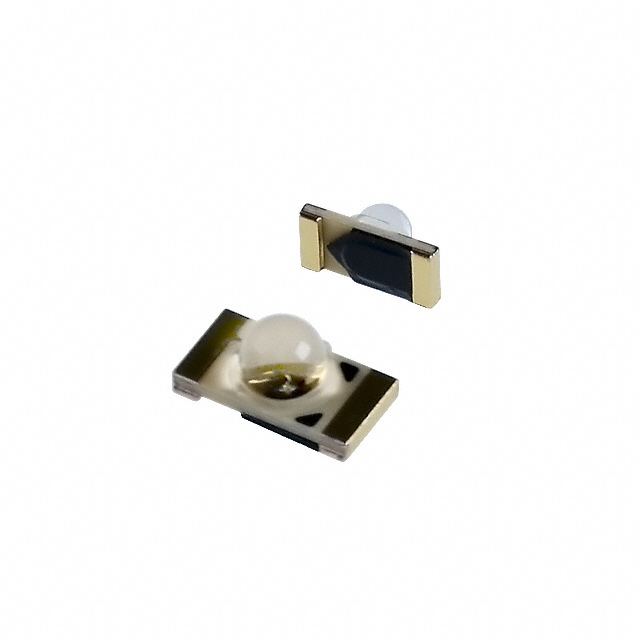

The Panasonic LNJ318C8PRA is a surface-mount LED in the 1206 (3216 Metric) package, featuring a pure green emission with a peak wavelength of 555nm. It utilizes a round lens with a domed top and a 30° viewing angle. The component operates at a typical forward voltage of 2.03V and a test current of 10mA, delivering a brightness rating of 3.5mcd. Its physical dimensions are 3.20mm in length, 1.60mm in width, and 1.10mm in height.

LED Indication - Discrete Feature Summary

• Emits pure green light with a peak wavelength of 555nm
• Features a 1206 leadless package with a 30° dome lens
• Designed for surface mount technology applications

LED Indication - Discrete Applications

• Device status indication
• Panel indicator lights
• Instrumentation displays

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact binning and packaging configuration. Ensure compatibility with standard reflow soldering profiles for 1206 components. Confirm that the required luminous intensity matches the 3.5mcd rating for the intended application visibility requirements.

LED Indication - Discrete Selection Notes

Select this component when a compact 1206 footprint is required for green indication. Consider the 3.5mcd output level against ambient lighting conditions. Verify that the 2.03V forward voltage aligns with the driving circuit's voltage headroom and current limiting design.

LED Indication - Discrete Part Context

This part belongs to the Panasonic discrete LED family designed for surface mounting. It is categorized under optoelectronics for indication purposes. The 1206 form factor allows for high-density PCB layouts compared to larger through-hole alternatives.

LED Indication - Discrete Replacement Considerations

Consult official Panasonic documentation for direct cross-references within the LNJx18C8x8xR series. Verify mechanical and electrical parameters before substituting with other manufacturers' 1206 green LEDs.
