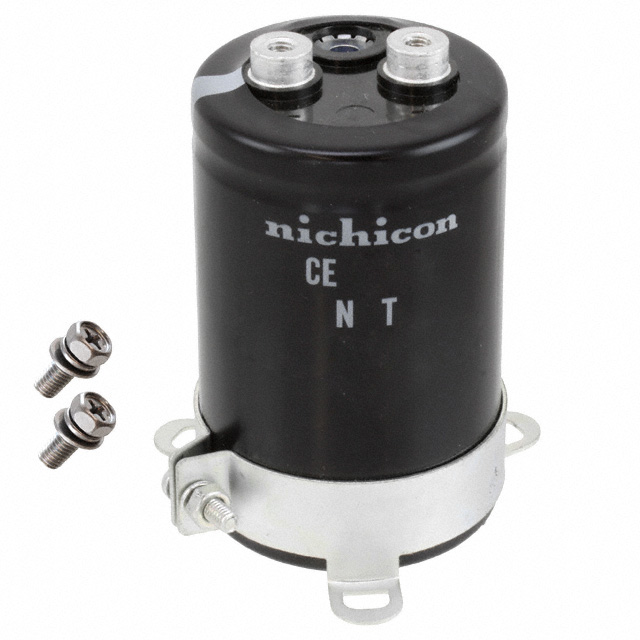

LNT2V681MSEF

LNT2V681MSEF is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 680UF 20% 350V SCREW CH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for LNT2V681MSEF

• Description：CAP ALUM 680UF 20% 350V SCREW CH
• Series：LNT
• Mfr：Nichicon
• Package：Bulk
• Capacitance：680 µF
• Tolerance：±20%
• Voltage - Rated：350 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-25°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：4.1 A @ 120 Hz
• Ripple Current @ High Frequency：5.74 A @ 10 kHz
• Lead Spacing：0.866" (22.00mm)
• Size / Dimension：2.008" Dia (51.00mm)
• Height - Seated (Max)：3.268" (83.00mm)
• Surface Mount Land Size：-
• Mounting Type：Chassis Mount
• Package / Case：Radial, Can - Screw Terminals

Aluminum Electrolytic Capacitors datasheet and documents for LNT2V681MSEF
