LQP02HQ24NJ02E

Fixed Inductors Overview

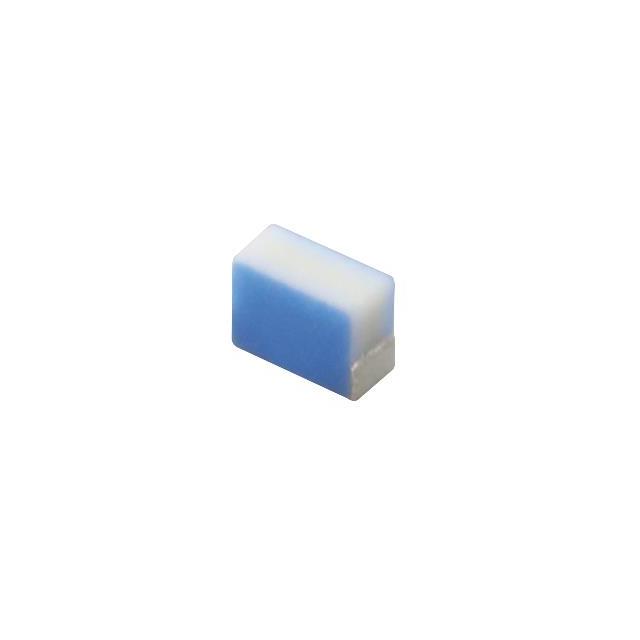

The Murata LQP02HQ24NJ02E is an unshielded thin film RF inductor designed for surface mount applications. It features a ferrite core within a compact 01005 (0402 metric) package measuring 0.4 mm in length, 0.2 mm in width, and 0.3 mm in height. The component provides an inductance of 24 nH with a tolerance of 5%. It operates reliably across a temperature range from -55°C to +125°C. Key electrical specifications include a maximum DC current rating of 100 mA, a maximum DC resistance of 2 Ohms, a minimum Q factor of 8, and a self-resonant frequency of 2.6 GHz.

Fixed Inductors Feature Summary

• Utilizes thin film technology with a ferrite core for stable RF performance
• Unshielded construction suitable for standard RF circuit layouts
• Compact 01005 footprint enables high-density PCB mounting

Fixed Inductors Applications

• RF signal processing circuits
• Impedance matching networks
• Filtering applications in wireless communication devices

Fixed Inductors Procurement Notes

Verify the specific part number against official Murata documentation to ensure accuracy. Confirm that the 01005 package dimensions and electrical parameters match your design requirements. Check for RoHS compliance status as indicated in the manufacturer's datasheet. Ensure handling procedures account for the small form factor during assembly.

Fixed Inductors Selection Notes

Select this component when a 24 nH inductance value is required in a minimal space constraint. Consider the 5% tolerance and 100 mA current limit for circuit compatibility. Evaluate the self-resonant frequency of 2.6 GHz against the operating frequency to ensure effective performance. Compare thermal characteristics against the intended operating environment limits.

Fixed Inductors Part Context

This component belongs to the Murata LQP series of RF inductors. The series offers various inductance values in the 01005 package size. These components are engineered for high-frequency applications requiring precise inductance control. The thin film construction supports consistent quality across the product line.

Fixed Inductors FAQ

What is the self-resonant frequency of the LQP02HQ24NJ02E?

The self-resonant frequency is 2.6 GHz.

Is the LQP02HQ24NJ02E shielded?

No, the LQP02HQ24NJ02E is an unshielded inductor.
