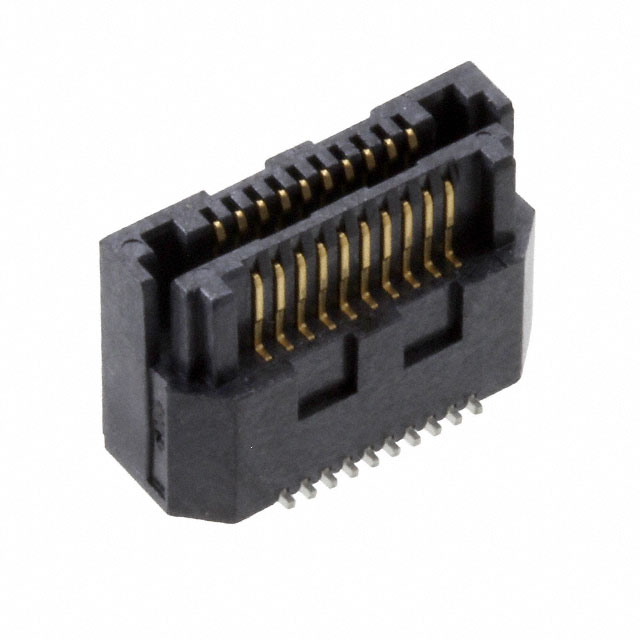

Arrays, Edge Type, Mezzanine (Board To Board) LSS-110-02-F-DV-A product image

LSS-110-02-F-DV-A

$3.21

Description：CONN SELF-MATE 20POS SMD GOLD
Series：Razor Beam™ LSS
Mfr：Samtec Inc.
Package：Tray

SKU:cb54f55dd3d7 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Samtec Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LSS-110-02-F-DV-A is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN SELF-MATE 20POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for LSS-110-02-F-DV-A

Description：CONN SELF-MATE 20POS SMD GOLD
Series：Razor Beam™ LSS
Mfr：Samtec Inc.
Package：Tray
Connector Type：Self Mating, Non-Gendered, Hermaphroditic
Number of Positions：20
Pitch：0.025" (0.64mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide
Contact Finish：Gold
Contact Finish Thickness：3.00µin (0.076µm)
Mated Stacking Heights：9mm, 10mm, 12mm
Height Above Board：0.287" (7.30mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for LSS-110-02-F-DV-A

LSS-110-02-F-DV-A
