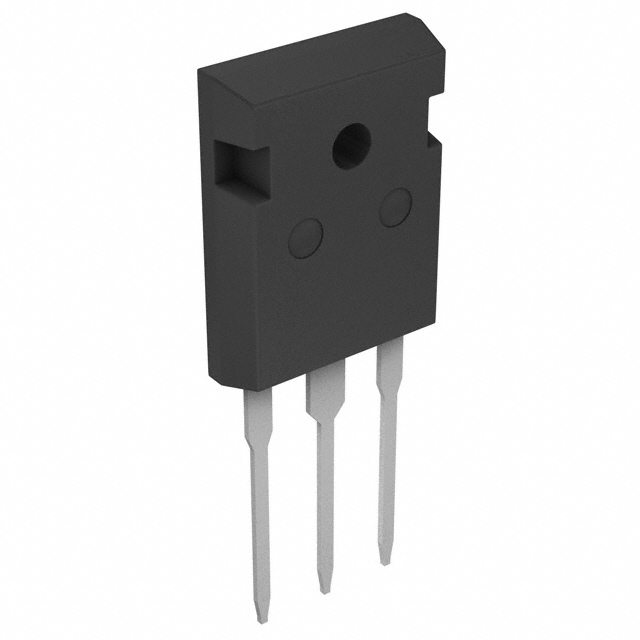

LT1083CP#PBF

Description：IC REG LINEAR POS ADJ 7.5A TO3P
Series：-
Mfr：Analog Devices Inc.
Package：Bulk

SKU:9c968d3b4239 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LT1083CP#PBF is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc.. Its product description is IC REG LINEAR POS ADJ 7.5A TO3P. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for LT1083CP#PBF

Description：IC REG LINEAR POS ADJ 7.5A TO3P
Series：-
Mfr：Analog Devices Inc.
Package：Bulk
Output Configuration：Positive
Output Type：Adjustable
Number of Regulators：1
Voltage - Input (Max)：30V
Voltage - Output (Min/Fixed)：1.25V
Voltage - Output (Max)：28.5V
Voltage Dropout (Max)：1.5V @ 7.5A
Current - Output：7.5A
Current - Quiescent (Iq)：-
Current - Supply (Max)：-
PSRR：75dB (120Hz)
Control Features：-
Protection Features：Over Temperature
Operating Temperature：0°C ~ 125°C
Mounting Type：Through Hole
Package / Case：TO-3P-3, SC-65-3
Supplier Device Package：TO-3P

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for LT1083CP#PBF

LT1083CP#PBF

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The LT1083CP#PBF is a low dropout positive adjustable regulator manufactured by Analog Devices Inc. It provides up to 7.5 A output current with an input-to-output differential voltage of 1 V at full load. The device features internal thermal limiting and current limiting for protection. It requires a minimum 10 µF output capacitor for stability. The package type is TO-220.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Provides high-efficiency regulation with low dropout voltage
Capable of delivering up to 7.5 A continuous output current
Includes built-in thermal overload and current limit protection

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

High-current linear power supplies
Post-regulation for switching power converters
Battery chargers requiring stable voltage regulation

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the exact suffix #PBF indicates lead-free compliance and RoHS status per manufacturer specifications. Confirm the package variant matches the required TO-220 footprint. Check for any specific temperature grade or testing requirements before finalizing procurement.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when high current capability and low dropout performance are required in a linear topology. Ensure the input voltage remains within the maximum differential rating. Verify that the thermal dissipation capabilities of the chosen heatsink and package meet the application's power loss requirements under maximum load conditions.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the LT1083 series, which includes fixed voltage variants such as LT1083-5 and LT1083-12. The CP designation typically refers to the plastic TO-220 package. The series is designed for applications needing efficient regulation with minimal heat generation compared to standard regulators.
