LTL-1CHY

LED Indication - Discrete Overview

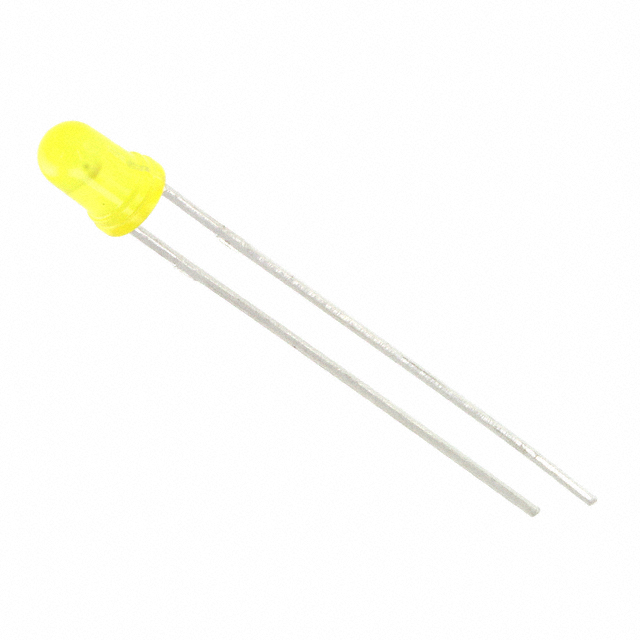

The LTL-1CHY is a single-color yellow LED indicator manufactured by Lite-On Inc. It features a T-1 (3 mm) through-hole package with a water-clear dome lens. The component emits light at a peak wavelength of 590 nm and provides an optical intensity of 40 mcd. Electrical characteristics include a forward voltage of 2.1 V and a maximum power rating of 60 mW when operated at a forward current of 20 mA.

LED Indication - Discrete Feature Summary

• Yellow emission with transparent water-clear lens
• Standard T-1 (3 mm) through-hole form factor
• Dome-shaped lens design for optimized viewing angle

LED Indication - Discrete Applications

• Panel status indicators
• Power supply visual feedback
• Control board signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Lite-On documentation to confirm exact binning and packaging variations. Ensure the procurement channel sources directly from authorized distributors or the manufacturer to guarantee authenticity and compliance with RoHS standards. Cross-reference datasheet revisions before finalizing orders.

LED Indication - Discrete Selection Notes

Select this component for applications requiring standard 3 mm through-hole mounting with yellow visibility. Confirm that the 20 mA forward current and 2.1 V drop align with the host circuit's drive capabilities. Verify mechanical clearance for the T-1 package dimensions in the target enclosure design.

LED Indication - Discrete Part Context

This part belongs to the Lite-On LTL series of discrete LED indicators, designed for general-purpose visual signaling. The series offers various colors and package sizes to support diverse electronic equipment requirements. The LTL-1CHY specifically addresses needs for compact, reliable yellow illumination in standard PCB layouts.

LED Indication - Discrete Replacement Considerations

Consult official Lite-On substitution guides for verified equivalents. Generic replacements may differ in luminous intensity or spectral distribution. Validate pin compatibility and thermal characteristics before integrating alternative components into existing designs.
