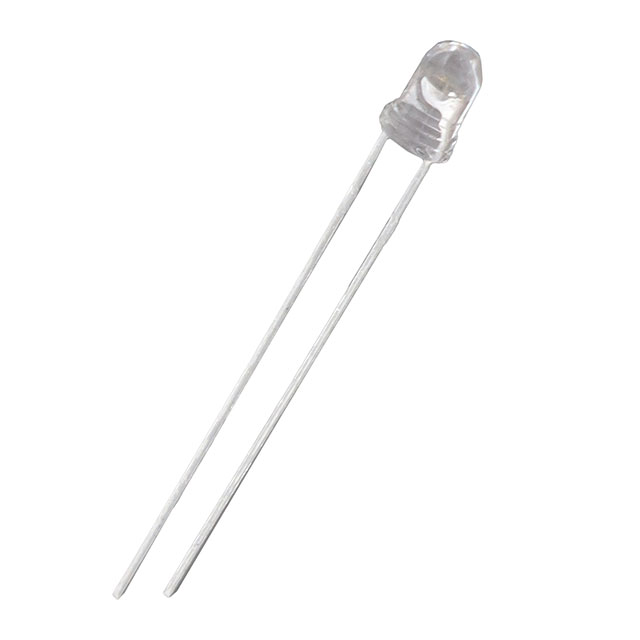

LTL1CHTBK3LC

$0.19

Description：LED BLUE CLEAR T/H
Series：-
Mfr：Lite-On Inc.
Package：Bulk

SKU:310ce3644209 Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTL1CHTBK3LC is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED BLUE CLEAR T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTL1CHTBK3LC

Description：LED BLUE CLEAR T/H
Series：-
Mfr：Lite-On Inc.
Package：Bulk
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：130mcd
Lens Style：Round with Domed Top
Lens Size：3.10mm Dia
Voltage - Forward (Vf) (Typ)：3V
Current - Test：2mA
Viewing Angle：30°
Mounting Type：Through Hole
Wavelength - Dominant：470nm
Wavelength - Peak：468nm
Features：-
Package / Case：Radial
Supplier Device Package：-
Size / Dimension：-
Height (Max)：5.20mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTL1CHTBK3LC

LTL1CHTBK3LC

LED Indication - Discrete Overview

The LTL1CHTBK3LC is a standard through-hole LED from Lite-On Inc. emitting blue light at a wavelength of 470nm. It features a clear, colorless lens and operates with a forward voltage of 3V. The component provides a millicandela rating of 130mcd. Designed for radial mounting, it serves as a discrete indication element suitable for various electronic applications requiring visual status signaling.

LED Indication - Discrete Feature Summary

Emits blue light at 470nm wavelength
Features a clear, colorless lens design
Operates at a forward voltage of 3V
Provides a millicandela rating of 130mcd

LED Indication - Discrete Applications

Electronic device status indication
Panel indicator lights
Visual signaling in control systems

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required lens transparency and emission color specifications. Confirm that the radial through-hole package matches the target PCB layout requirements. Cross-reference the datasheet parameters against application constraints to validate electrical performance suitability.

LED Indication - Discrete Selection Notes

Select this component when a blue indication signal is required for panel mounting. Ensure the 3V forward voltage aligns with the driving circuit capabilities. Verify that the 130mcd brightness level meets visibility needs under operating conditions. Check mechanical dimensions for proper fit within the designated housing or enclosure space.

LED Indication - Discrete Part Context

This part belongs to the standard LED category from Lite-On Inc., designed for general-purpose indication tasks. It utilizes a radial lead configuration for easy insertion into printed circuit boards. The blue emission spectrum distinguishes it from other color variants within the manufacturer's discrete LED lineup.

LED Indication - Discrete Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify matching electrical characteristics such as forward voltage and luminous intensity before swapping components. Ensure physical footprint compatibility to maintain board integrity during replacement procedures.
