LV2862YDDCR

$0.72

Description：IC REG BUCK ADJ 600MA SOT23
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:33219aa5c7e5 Category: Voltage Regulators - DC DC Switching Regulators Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LV2862YDDCR is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC REG BUCK ADJ 600MA SOT23. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for LV2862YDDCR

Description：IC REG BUCK ADJ 600MA SOT23
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：4V
Voltage - Input (Max)：60V
Voltage - Output (Min/Fixed)：0.765V
Voltage - Output (Max)：60V
Current - Output：600mA
Frequency - Switching：2.1MHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

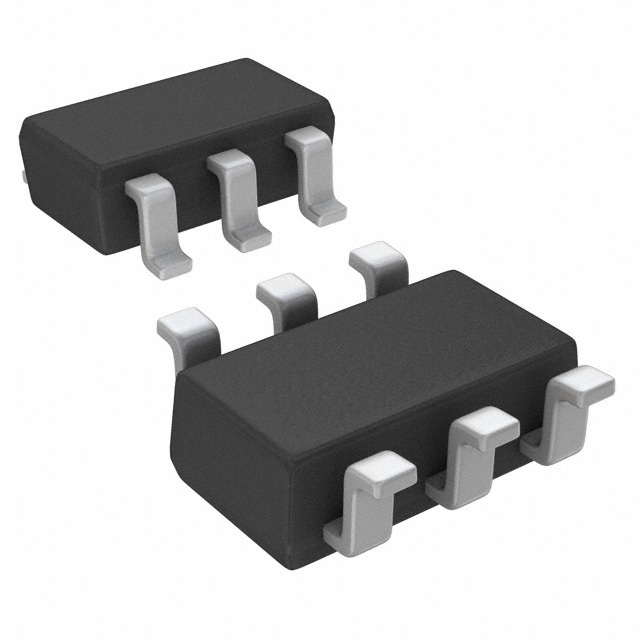

Package / Case：SOT-23-6 Thin, TSOT-23-6
Supplier Device Package：SOT-23-THIN
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for LV2862YDDCR

LV2862YDDCR

Voltage Regulators - DC DC Switching Regulators Overview

The LV2862YDDCR is a synchronous buck converter from Texas Instruments, designed for high-efficiency power regulation. It supports an input voltage range of 4.5 V to 60 V and delivers up to 600 mA of output current. The device operates at a fixed switching frequency of 1.25 MHz, enabling the use of compact external components. It features adjustable output voltage starting from 0.765 V, integrated soft-start, and thermal shutdown protection. Packaged in a thin SOT-23-6 (TSOT-23) form factor, it is suitable for space-constrained applications requiring reliable DC/DC conversion.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Synchronous rectification architecture for enhanced efficiency
Wide input voltage tolerance up to 60 V
Compact TSOT-23-6 package design

Voltage Regulators - DC DC Switching Regulators Applications

Automotive electronics power supply modules
Industrial control system voltage regulation
Portable equipment DC-DC conversion

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'Y' indicates the 1.25 MHz switching frequency variant when sourcing. Confirm the TSOT-23-6 package type matches your PCB footprint requirements. Ensure compatibility with the 0.765 V feedback reference voltage for your target output settings. Check RoHS compliance status for your region's regulatory needs.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a wide input voltage range up to 60 V is required alongside moderate output current capabilities. The synchronous design offers better efficiency than non-synchronous alternatives at similar load levels. Consider the 1.25 MHz frequency for balancing component size against electromagnetic interference constraints compared to lower-frequency options.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LV2862 family of SIMPLE SWITCHER regulators. It shares core topology with variants like LV2862XDDCR but differs in switching frequency specifications. The family targets automotive and industrial markets needing robust, high-voltage step-down solutions in small footprints.
