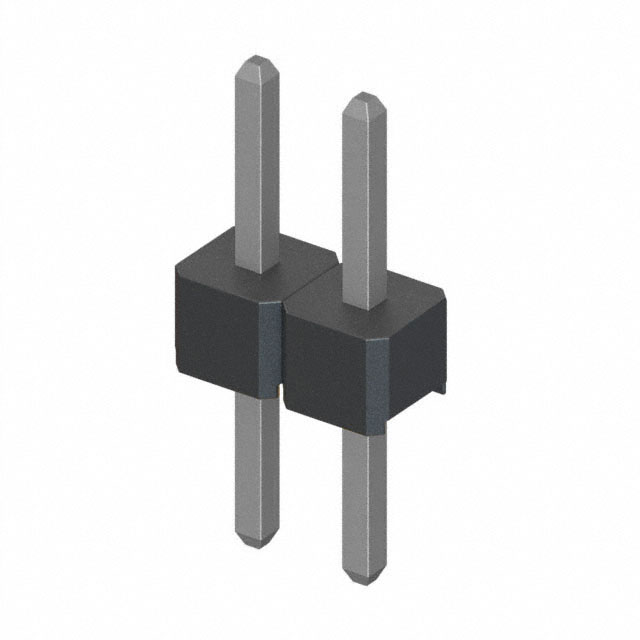

M22-2010246

$0.13

Description：CONN HEADER VERT 2POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:4bd91d2e0b21 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2010246 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 2POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2010246

Description：CONN HEADER VERT 2POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.134" (3.40mm)
Overall Contact Length：0.331" (8.40mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2010246

M22-2010246

Headers, Male Pins Overview

The M22-2010246 is a male pin header connector from the Harwin M22 series, designed for through-hole mounting. It features a single row with two positions and a 2.00mm pitch. The contacts are made of phosphor bronze with a tin finish, rated for 1A current and 500VAC voltage. The housing is constructed from black nylon (PA6T) with a UL94 V-0 flammability rating. Operating temperature ranges from -40°C to +105°C. Contact dimensions include a tail length of 3.4mm and a mating pin length of 3.5mm.

Headers, Male Pins Feature Summary

Through-hole straight configuration for board-to-board connectivity
Tin-plated phosphor bronze contacts for reliable signal transmission
High-temperature resistant PA6T insulation material

Headers, Male Pins Applications

General electronic interconnections
Industrial control systems
Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer's part number and checking for RoHS compliance documentation. Confirm that the specific tin-plated variant matches the design requirements, as the M22 series offers gold-plated alternatives. Ensure the through-hole footprint aligns with the PCB layout specifications before finalizing procurement.

Headers, Male Pins Selection Notes

Select this model when a low-cost, tin-plated solution is required for non-corrosive environments. The 2-position single-row format is suitable for compact designs. Consider the M22-2010242 if gold plating is necessary for enhanced corrosion resistance or higher cycle life applications.

Headers, Male Pins Part Context

This component belongs to the M22 series, a family of 2.00mm pitch connectors known for their slim profile and robust mechanical performance. The series includes various configurations in terms of rows, positions, and contact finishes to support diverse electronic assembly needs.
