M22-2030305

Headers, Male Pins Overview

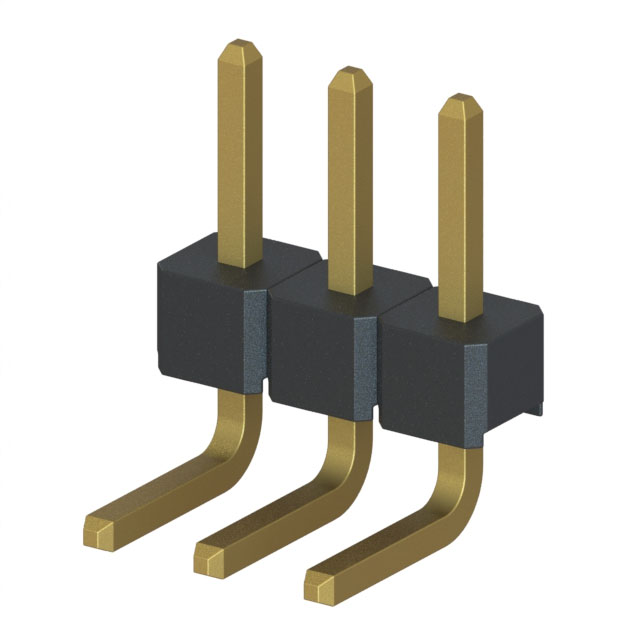

The M22-2030305 is a single-row male pin header from the Harwin M22 series, designed for board-to-board interconnections. It features a 2mm pitch and accommodates three positions. The connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. It is engineered for through-hole mounting on printed circuit boards. The unit operates within a temperature range of -40°C to +105°C and supports a voltage rating of 500V with a current capacity of 1A.

Headers, Male Pins Feature Summary

• Gold-plated phosphor bronze contacts provide corrosion resistance and stable electrical performance.
• Right-angle orientation facilitates efficient space utilization in dense electronic assemblies.
• Through-hole termination ensures secure mechanical attachment to the target substrate.

Headers, Male Pins Applications

• Board-to-board interconnects in industrial control systems
• Signal routing in automotive electronics modules
• Connections within consumer electronic device assemblies

Headers, Male Pins Procurement Notes

Verify the specific contact configuration and pin count against design requirements before ordering. Confirm that the right-angle form factor aligns with the mechanical layout constraints of the assembly. Ensure compatibility with mating connectors within the M22 series ecosystem to maintain proper engagement and alignment during operation.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for three-position circuits. The 2mm pitch offers a balance between density and manufacturability. Consider the 500V rating and operating temperature limits to ensure suitability for the intended environmental conditions and electrical loads.

Headers, Male Pins Part Context

This part belongs to the M22 series, which provides a comprehensive range of high-density interconnect solutions. The series is characterized by its robust construction and precise engineering, suitable for demanding applications requiring reliable connectivity in compact spaces.

Headers, Male Pins Replacement Considerations

M22-2022205 is listed as an alternative part number within the same manufacturer portfolio. Verify dimensional and electrical compatibility before substitution.
