M22-2040305

Headers, Male Pins Overview

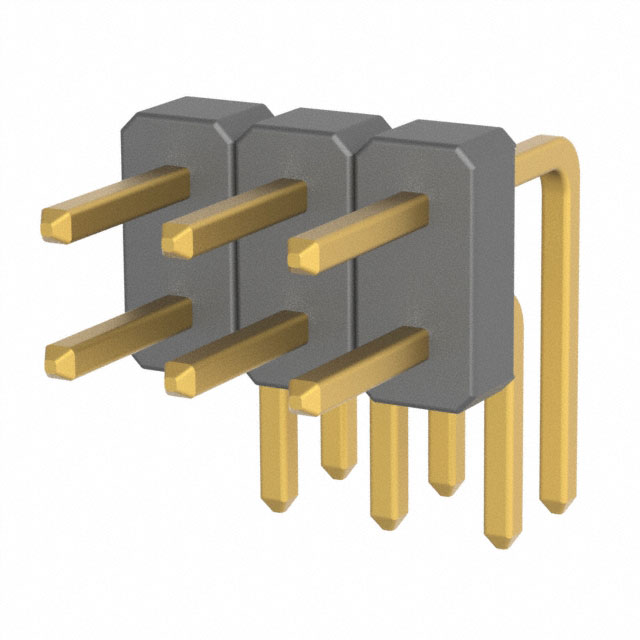

The Harwin M22-2040305 is a DIL pin header from the M22 series, designed for through-board mounting. It features a 3+3 position layout with a 2 mm pitch and horizontal orientation. The connector utilizes phosphor bronze contacts with gold plating to ensure reliable electrical performance. It is rated for 1 A current and supports operating temperatures between -40°C and +105°C.

Headers, Male Pins Feature Summary

• Horizontal dual-in-line configuration for compact board-to-board connections
• Gold-plated phosphor bronze contacts for enhanced conductivity and durability
• Through-hole solder termination for secure PCB attachment

Headers, Male Pins Applications

• Board-to-board interconnects in industrial electronics
• High-density PCB layouts requiring horizontal mounting
• Automotive control modules and sensor interfaces

Headers, Male Pins Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm that the part number matches the specific 3+3 horizontal configuration. Ensure compatibility with mating sockets regarding pitch and contact alignment before integration into production assemblies.

Headers, Male Pins Selection Notes

Select this model when horizontal space is limited and robust connectivity is required. The gold plating offers superior corrosion resistance compared to tin variants. Verify that the 2 mm pitch aligns with existing PCB footprint designs and mating connector specifications.

Headers, Male Pins Part Context

Part of the M22 series, known for fine-pitch reliability. Designed for applications demanding high density and mechanical stability. Suitable for environments requiring consistent performance across wide temperature ranges.

Headers, Male Pins Replacement Considerations

• M22-2040342
