M22-2041005

Headers, Male Pins Overview

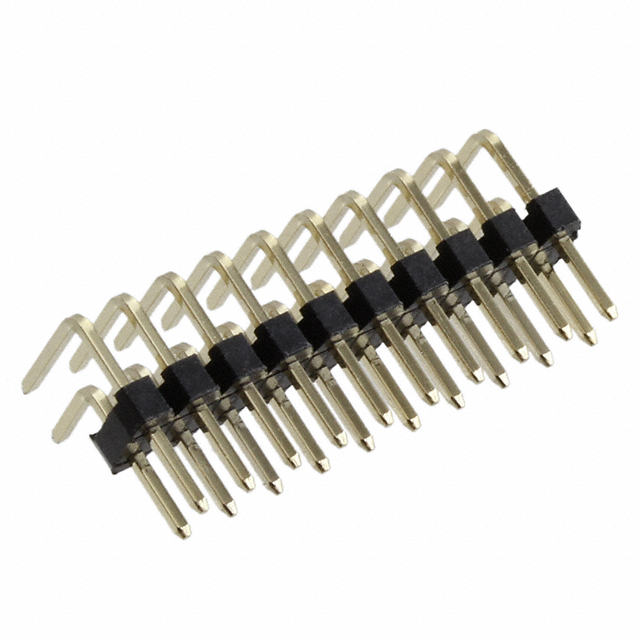

The M22-2041005 is a male pin header connector from the Harwin M22 series, designed for board-to-board applications. It features a 2mm (0.079 inch) pitch with 20 positions arranged in a dual inline configuration (two rows). The connector utilizes through-hole termination and is oriented at a right angle. Electrical ratings include a current capacity of 1A per contact and a voltage rating of 650VAC. The operating temperature range spans from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact PCB layout designs
• Dual inline structure supports high-density interconnect requirements
• Gold-plated phosphor bronze contacts ensure reliable conductivity
• Through-hole mounting provides secure mechanical attachment

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Industrial control systems
• Communication equipment

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm the right-angle configuration and dual-row layout. Ensure compatibility with mating receptacles regarding pitch and row spacing. Check for RoHS compliance status if required by project specifications. Confirm lead times and availability directly with authorized distributors or the manufacturer.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header is required for dense board stacking. The 2mm pitch suits applications needing robust connections without excessive board space usage. Verify that the 1A current rating meets circuit demands. Consider the through-hole installation method for mechanical stability during operation.

Headers, Male Pins Part Context

This part belongs to the M22 series, known for fine 2mm pitch connectors. The series offers various configurations including single and double rows with different pin counts. Designed for industrial standards, these connectors support both surface mount and through-hole technologies depending on the specific variant.

Headers, Male Pins Replacement Considerations

Compatible mating parts include Harwin M22 series female headers such as M22-6361042 or M22-6341042. Ensure any substitute maintains the 2mm pitch and dual-row alignment. Verify that alternative components meet the same electrical and thermal specifications.
