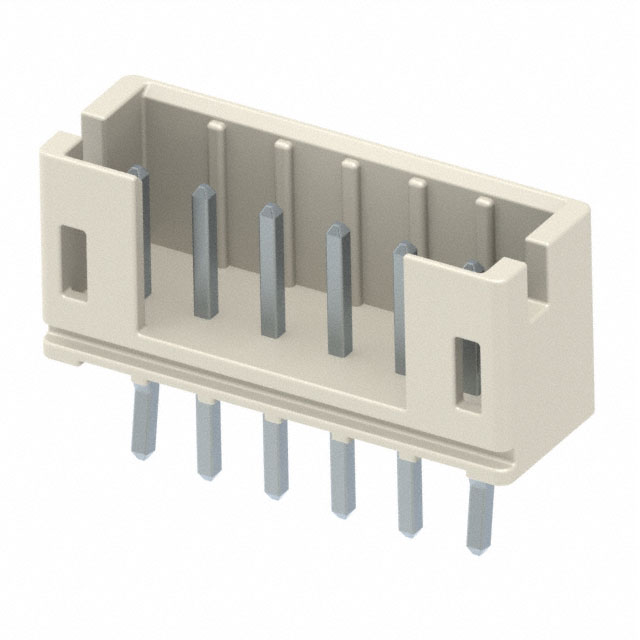

M22-2200646

Description：CONN HEADER VERT 6POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube

SKU:149be981f2fc Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2200646 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 6POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2200646

Description：CONN HEADER VERT 6POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：6
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Kinked Pin, Solder
Fastening Type：Detent Lock
Contact Length - Mating：-
Contact Length - Post：0.134" (3.40mm)
Overall Contact Length：-
Insulation Height：0.240" (6.10mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA9T), Nylon 9T
Features：-
Operating Temperature：-25°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：2A per Contact
Voltage Rating：100V

Headers, Male Pins datasheet and documents for M22-2200646

M22-2200646

Headers, Male Pins Overview

The Harwin M22-2200646 is a vertical pin header from the M22 series, designed for board-to-board connections. It features a 2mm pitch and a 6+6 double in-line configuration, providing 12 contact positions. The connector utilizes phosphor bronze contacts with tin plating and a nylon housing rated UL 94 V-0. It supports a current rating of 1A and a voltage rating of 650VAC. Designed for through-hole installation, it operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Vertical orientation facilitates compact board stacking applications
Tin-plated phosphor bronze contacts ensure reliable conductivity
Nylon housing provides UL 94 V-0 flammability resistance

Headers, Male Pins Applications

Board-to-board interconnects
High-density electronic assemblies
Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating and housing material specifications. Ensure the selected variant matches the required vertical orientation and pin count for your PCB layout. Cross-reference the manufacturer part number with authorized distributors to confirm current availability status before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a vertical board-to-board connection is required with a 2mm pitch. The tin-plated finish offers cost-effective conductivity suitable for general-purpose applications. Verify that the 1A current rating and 650VAC insulation withstand requirements align with the system's electrical design parameters and environmental operating conditions.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, a family of high-reliability connectors known for robust mechanical performance. The series offers various configurations including straight and right-angle headers. The M22-2200646 specifically addresses needs for vertical mounting with a 6+6 pin arrangement, fitting into broader industrial and commercial electronics ecosystems requiring standardized spacing.
