M22-2410442

Description：CONN HEADER R/A 8POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube

SKU:98c9ea1deb78 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2410442 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 8POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2410442

Description：CONN HEADER R/A 8POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：0.110" (2.79mm)
Overall Contact Length：-
Insulation Height：0.169" (4.30mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2410442

M22-2410442

Headers, Male Pins Overview

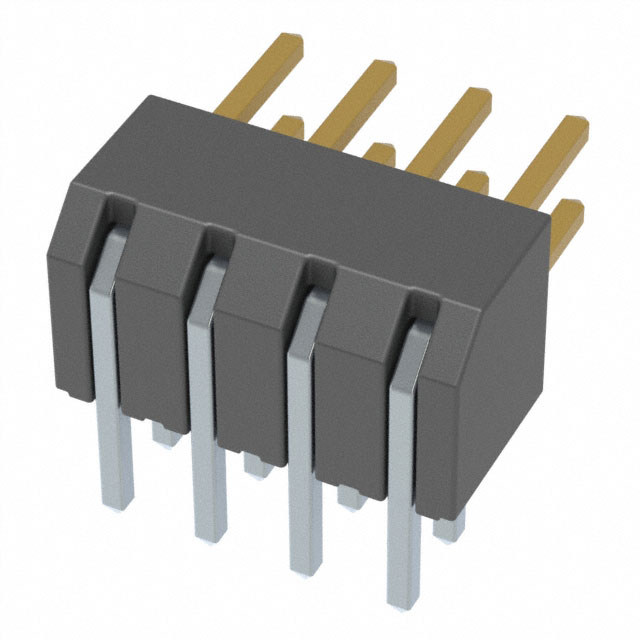

The M22-2410442 is a pin header connector from the Harwin M22 series, designed for through-hole mounting. It features an 8-position configuration arranged in two rows of four (4+4). The connector utilizes a 2 mm pitch and is oriented at a right angle. Contact surfaces are finished with gold and tin plating to ensure reliable electrical performance.

Headers, Male Pins Feature Summary

Right-angle orientation facilitates compact board layout integration
Dual-row structure provides high-density connection capability
Gold and tin contact plating ensures corrosion resistance

Headers, Male Pins Applications

General electronic interconnects
Industrial control systems
Consumer electronics assemblies

Headers, Male Pins Procurement Notes

This component is officially listed as End-of-Life (EOL) by the manufacturer. Distribution availability is restricted or non-existent in many regions. Procurement requires verification of obsolete stock status and potential obsolescence notifications before integration into new designs.

Headers, Male Pins Selection Notes

Engineers should evaluate this part only for legacy system maintenance or repair scenarios due to its discontinued status. New product development must utilize current M22 series alternatives that offer active supply chain support and updated manufacturing compliance.

Headers, Male Pins Part Context

The M22 series represents a family of 2.0 mm pitch headers known for robust mechanical retention. This specific model belongs to the horizontal right-angle variant within the collection, distinguished by its dual-row pin strip architecture and specialized surface treatment for durability.
