M22-2510246

Headers, Male Pins Overview

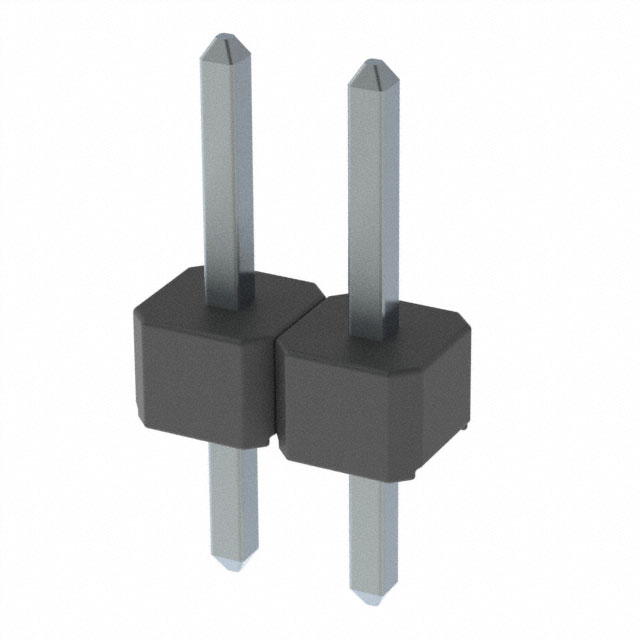

The M22-251046 is a single-row, vertical pin header assembly manufactured by Harwin Inc. It features a 2.0 mm pitch and contains two positions for board-to-board interconnection. The connector utilizes through-hole termination with straight PC tails designed for standard PCB mounting. The contact surfaces are finished with tin plating to ensure reliable electrical conductivity. This component operates within a temperature range of -40°C to 105°C and meets UL94 flammability ratings for material safety.

Headers, Male Pins Feature Summary

• Single row vertical configuration for space-efficient board stacking
• Through-hole termination with straight PC tails for secure PCB mounting
• Tin-plated contacts ensuring reliable signal transmission

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Industrial control systems requiring robust vertical headers
• Consumer electronics utilizing 2mm pitch connector standards

Headers, Male Pins Procurement Notes

Verify the exact part number against official Harwin documentation to confirm the specific pin count and orientation. Ensure compatibility with mating socket components regarding pitch and height specifications. Check current availability status as manufacturing lifecycles may affect supply continuity. Confirm RoHS compliance requirements match project environmental standards before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row vertical header is required for 2mm pitch applications. Consider the through-hole mounting method for mechanical stability over surface mount alternatives. Evaluate the tin finish suitability for the intended operating environment and mating cycles. Verify that the two-position count aligns precisely with the circuit design requirements.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, which defines 2mm pitch connector systems conforming to industry conventions for pin headers and sockets. The series offers various configurations including different row counts, orientations, and tail lengths. The M22-2510246 specifically represents a minimal two-position variant within this standardized ecosystem.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching 2mm pitch, single-row vertical orientation, and through-hole termination characteristics from other manufacturers.
