M22-2511005

Headers, Male Pins Overview

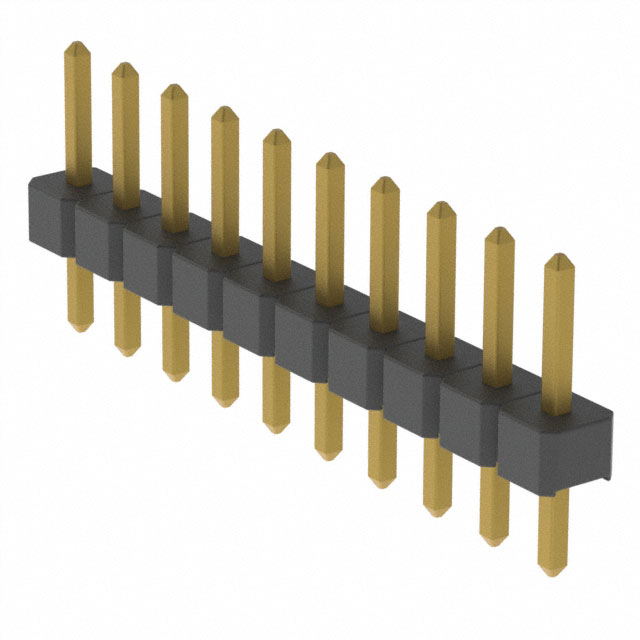

The M22-2511005 is a vertical pin header connector from the Harwin M22 series, designed for board-to-board applications. It features a 2 mm (0.079 inch) mating pitch and a single row of 10 positions. The connector utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Key dimensions include a 3.5 mm mating pin height and a 2.3 mm solder tail length. The housing is constructed from black polyamide (PA6T) nylon, rated UL94 V-0 for flammability, and supports an operating temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board interconnection design
• Gold-plated phosphor bronze contacts for durability
• UL94 V-0 rated black PA6T insulation
• Single row configuration with cuttable format

Headers, Male Pins Applications

• Board-to-board electrical connections
• High-density electronic assemblies
• Industrial control systems
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific part number M22-2511005 against official Harwin documentation to confirm current availability status. Ensure compatibility with mating sockets regarding pin height and pitch. Check for RoHS compliance requirements if applicable to your project specifications. Confirm that the single-row SIL configuration meets your PCB layout constraints before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header with a 2 mm pitch is required. The 3.5 mm mating height suits standard board thicknesses. Consider the cuttable nature of the header for custom position counts. Ensure the operating temperature range of -40°C to 105°C aligns with your environmental conditions. Verify that the gold-plated contact material meets your conductivity and corrosion resistance needs.

Headers, Male Pins Part Context

This connector belongs to the Harwin M22 series, which offers various configurations including right-angle and horizontal options. The M22 series is known for its compact size and robust mechanical performance. Similar parts in the series may differ in row count, orientation, or pin height. Always refer to the specific datasheet for precise dimensional tolerances and mating partner recommendations.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
