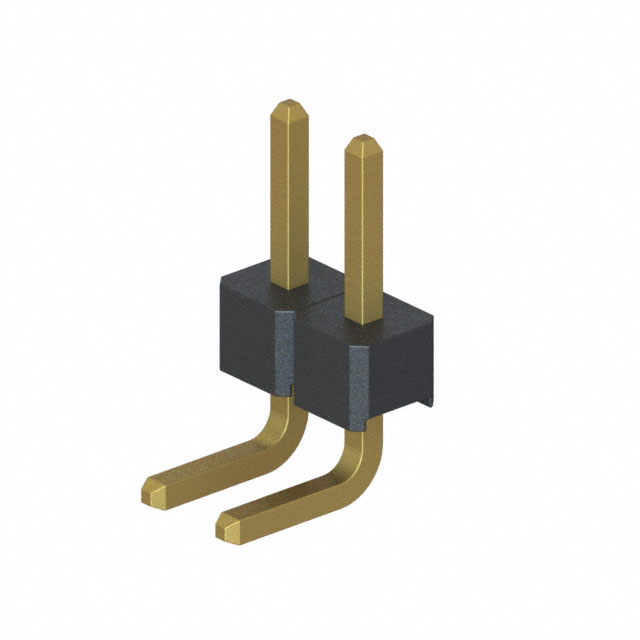

M22-2530205

$0.18

Description：CONN HEADER R/A 2POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:fa14e569be1e Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2530205 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 2POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2530205

Description：CONN HEADER R/A 2POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2530205

M22-2530205

Headers, Male Pins Overview

The Harwin M22-2530205 is a single-row, right-angle board-to-board header connector with a 2.00mm pitch and two positions. It features male pin contacts made of phosphor bronze with gold plating for reliable mating. The unit utilizes a black polyamide insulation material rated UL94 V-0 and supports through-hole mounting. Designed for horizontal PCB termination, it offers a contact length of 3.5mm for mating and a 2.4mm tail length for soldering.

Headers, Male Pins Feature Summary

Single-row right-angle configuration for compact vertical space utilization
Gold-plated phosphor bronze contacts ensure stable signal transmission
UL94 V-0 rated polyamide insulation provides flame resistance

Headers, Male Pins Applications

Compact PCB interconnection in consumer electronics
Board-to-board connections in industrial control systems
Signal routing in automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current production status and lead times. Ensure compatibility with mating sockets regarding pitch and contact geometry. Check for RoHS compliance requirements if operating in regulated markets. Confirm that the right-angle orientation matches the target PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required between adjacent PCBs. The 2.00mm pitch suits applications needing moderate density without excessive board area consumption. Verify that the 2.4mm through-hole tail length accommodates the target PCB thickness and solder mask clearance. Consider the single-row limitation for total I/O count requirements.

Headers, Male Pins Part Context

This connector belongs to the Harwin M22 series, which specializes in high-density, small-pitch interconnect solutions. The series is characterized by its robust mechanical design and suitability for automated assembly processes. The M22-2530205 variant specifically addresses the need for horizontal mating interfaces in space-constrained environments.
