M22-2531305

Headers, Male Pins Overview

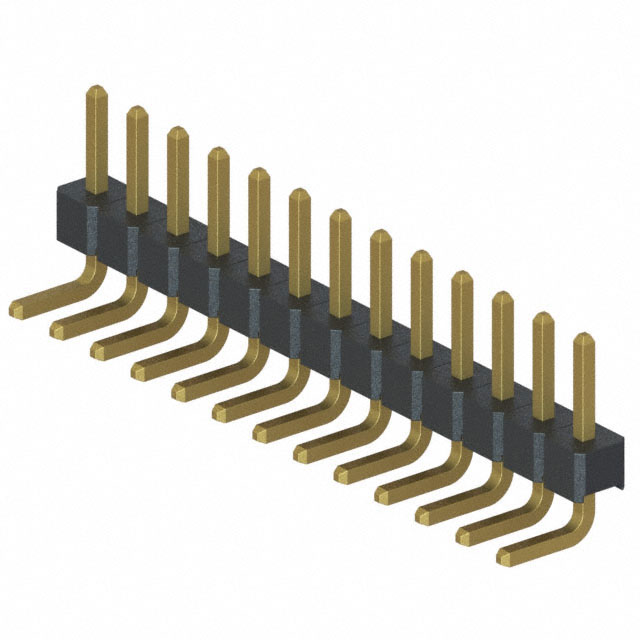

The Harwin M22-2531305 is a 13-position male pin header from the M22 series, designed for board-to-board connections. It features a 2.00mm (0.079 inch) pitch and a single row configuration with horizontal termination. The connector utilizes gold-plated contacts on a beryllium copper substrate, housed in black polyamide insulation rated UL94 V-0. It supports a mating cycle of 300 cycles and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Horizontal surface mount termination for low-profile PCB integration
• Gold-plated beryllium copper contacts ensure reliable signal transmission
• Cuttable design allows for flexible circuit board layout optimization

Headers, Male Pins Applications

• High-density electronic assemblies requiring compact form factors
• Industrial control systems operating in extreme temperatures
• Consumer electronics with strict space constraints

Headers, Male Pins Procurement Notes

Verify the specific suffix '305' indicates gold plating versus other finish options. Confirm the component status as active or obsolete through official Harwin channels before finalizing procurement plans. Ensure compatibility with mating sockets from the same M22 series family.

Headers, Male Pins Selection Notes

Select this model when a single-row, horizontal header is required for rigid PCB applications. Consider the 2.00mm pitch for standard density needs. Evaluate the 1.5A current rating against system requirements. Verify that the 300-cycle durability meets the mechanical stress expectations of the assembly process.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, known for its high-density interconnect solutions. The series offers various configurations including vertical and right-angle headers. The M22-2531305 specifically addresses the need for horizontal mounting in space-constrained environments while maintaining robust electrical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M22 series headers with identical 13-position, single-row, horizontal specifications. Verify contact material and plating thickness match if cross-referencing with generic equivalents. Ensure the mating socket interface remains compatible.
