M22-2531446

Headers, Male Pins Overview

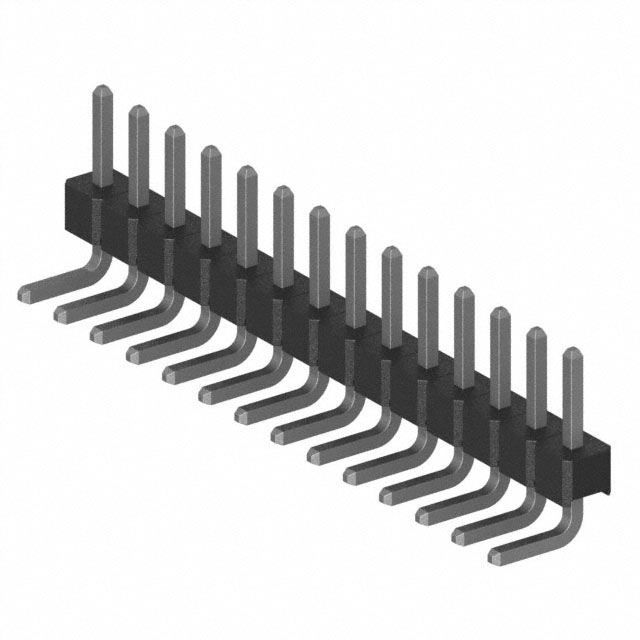

The M22-2531446 is a male pin header connector from the Harwin M22 series, designed for through-hole mounting. It features a right-angle configuration with 14 positions arranged in a single row. The connector utilizes a 2 mm (0.079 inch) pitch to accommodate standard board spacing requirements. The contacts are tin-plated to ensure reliable electrical connectivity and corrosion resistance. This component serves as a horizontal interconnection solution within electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for space-efficient board integration
• Single-row configuration with 14 contact positions
• Tin-plated contacts for enhanced durability and conductivity

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the exact part number suffix against official Harwin documentation, as variations may exist regarding plating or housing material. Confirm current availability status directly with authorized distributors, as lead times and stock levels fluctuate. Ensure compatibility with mating sockets before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, single-row header is required for PCB mounting. The 2 mm pitch dictates compatible mating hardware. Evaluate mechanical stress on the right-angle joint during assembly. Verify that the tin plating meets the environmental and electrical requirements of the specific application environment.

Headers, Male Pins Part Context

This part belongs to the M22 series of connectors by Harwin Inc., which offers various configurations including vertical and right-angle headers. The series is known for its robust construction and standardized 2 mm pitch, widely used in industrial and commercial applications requiring reliable signal and power transmission.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 14-position count, 2 mm pitch, right-angle orientation, and through-hole termination. Verify that any alternative maintains identical mechanical dimensions and contact plating specifications to ensure interchangeability.
