M22-2532005

Headers, Male Pins Overview

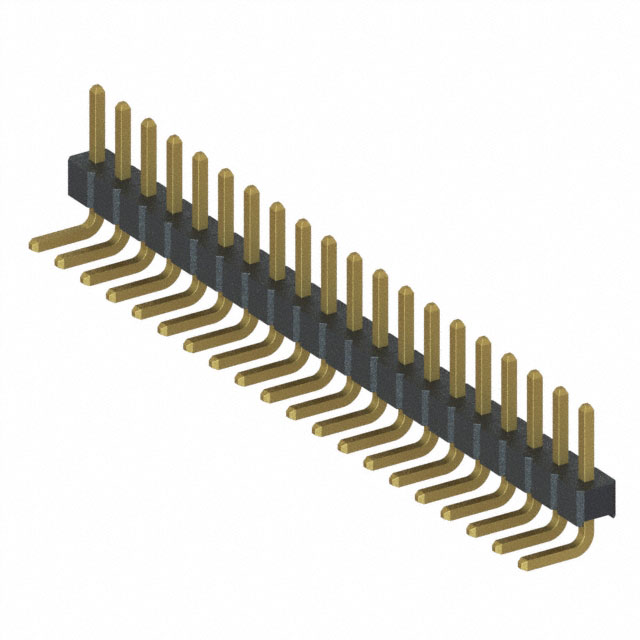

The Harwin M22-2532005 is a right-angle PCB header connector from the M22 series, designed for board-to-board applications. It features 20 positions with a 2mm pitch and utilizes female housing contacts. The component employs through-hole termination for secure mounting on printed circuit boards. Constructed with phosphor bronze contacts that are gold-plated, it ensures reliable signal transmission. The insulating material is PA6T nylon, rated UL94 V-0 for flammability. It operates within a temperature range of -40°C to 105°C and supports a current rating of 1A per contact.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact vertical stacking in dense electronic assemblies.
• Gold-plated phosphor bronze contacts provide durable conductivity and corrosion resistance.
• PA6T nylon insulation offers high thermal stability and UL94 V-0 flame retardancy.

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic devices
• Vertical stacking configurations in space-constrained PCB layouts
• Industrial control modules requiring reliable through-hole mounting

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm pin count, orientation, and plating specifications. Ensure compatibility with mating headers regarding pitch and housing dimensions. Cross-reference the UL94 V-0 rating and operating temperature range with application requirements. Confirm that the right-angle configuration aligns with mechanical assembly constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle connection is required for board-to-board interfaces. The 2mm pitch suits moderate density layouts, while the 20-position count balances connectivity needs with footprint size. The through-hole installation method provides robust mechanical retention compared to surface mount alternatives. Consider the 1A current rating and 105°C maximum temperature limit to ensure suitability for the intended electrical and thermal environment.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, a family of connectors known for their push-pull locking mechanism and modular design. The M22 series supports various configurations including straight and right-angle headers, sockets, and cable connectors. This specific model represents the right-angle male header variant, complementing the series' socket counterparts for complete interconnection solutions.

Headers, Male Pins Replacement Considerations

M22-2532005 is a specialized right-angle header; direct substitutes require identical 20-pin, 2mm pitch, right-angle, through-hole specifications. Verify mating compatibility with existing M22 series sockets. No generic cross-brand replacements are confirmed without detailed dimensional and electrical validation.
