M22-2540705

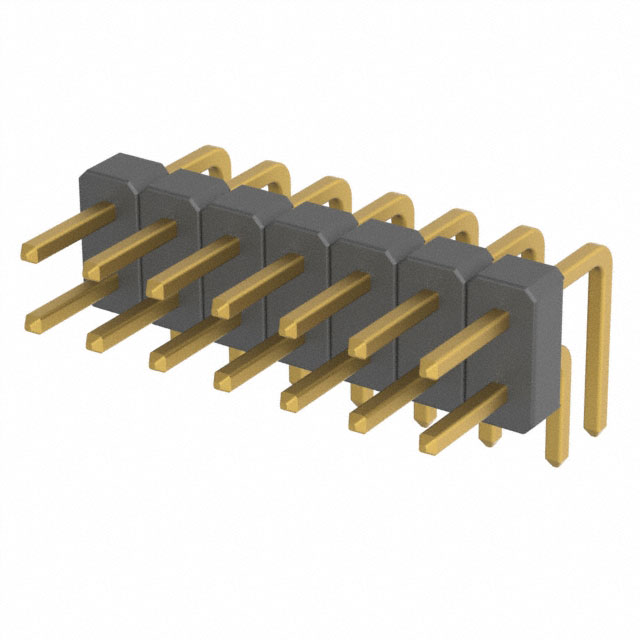

Description：CONN HEADER R/A 14POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:f3eadd78cbe9 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2540705 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 14POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2540705

Description：CONN HEADER R/A 14POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.157" (4.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2540705

M22-2540705

Headers, Male Pins Overview

The M22-2540705 is a rectangular connector header manufactured by Harwin Inc. It features a 14-position configuration with a 2mm (0.079 inch) pitch. The component utilizes right-angle through-hole termination for board-to-board applications. It belongs to the M22 series and employs tin-plated phosphor bronze contacts housed in black polyamide insulation rated UL94 V-0. The connector supports a current rating of 1A per contact and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Right-angle design facilitates compact vertical mounting on printed circuit boards.
Through-hole termination ensures secure mechanical attachment during assembly.
Tin-plated contacts provide reliable conductivity and corrosion resistance.

Headers, Male Pins Applications

Board-to-board interconnection systems
Industrial control unit assemblies
Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and orientation. Confirm that the tin plating specification aligns with environmental compliance requirements such as RoHS. Ensure mating connectors share the identical 2mm pitch and housing dimensions to guarantee proper interface compatibility.

Headers, Male Pins Selection Notes

Select this model when right-angle mounting is necessary to save vertical space. Choose based on the 14-position requirement and 2mm pitch constraints. Consider the through-hole installation method and operating temperature limits relative to the target application environment.

Headers, Male Pins Part Context

This component is part of the M22 series, which offers various configurations including straight and right-angle headers. The series provides options for different row counts and positions, all maintaining a consistent 2mm pitch for standardized interconnect solutions across diverse electronic products.
