M22-2540746

Headers, Male Pins Overview

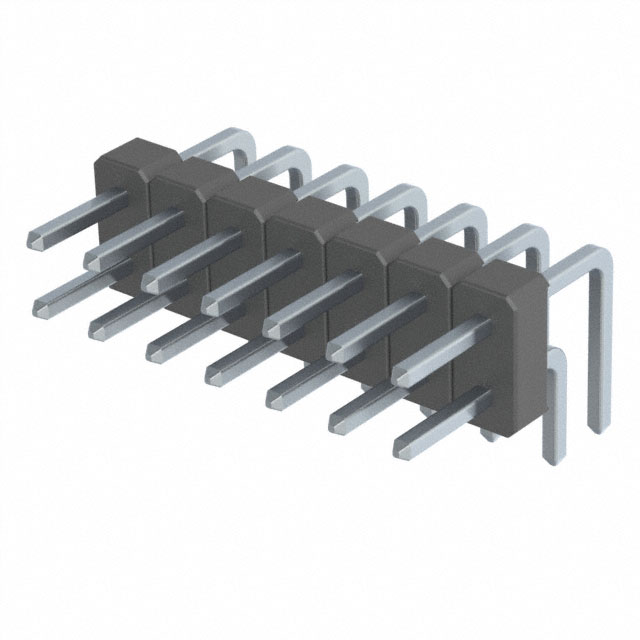

The M22-2540746 is a male pin header connector from the Harwin M22 series, designed for board-to-board applications. It features a 2mm pitch and a 14-position configuration arranged in two rows of seven pins each. The connector utilizes through-hole termination for secure PCB mounting and operates at right angles to the board surface. Constructed with phosphor bronze contacts finished with gold plating, it ensures reliable electrical performance within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact vertical stacking and space-constrained layouts.
• Gold-plated phosphor bronze contacts provide durable conductivity and corrosion resistance.
• Through-hole termination ensures robust mechanical fixation on printed circuit boards.

Headers, Male Pins Applications

• Board-to-board interconnections in industrial control systems
• Compact electronic modules requiring right-angle signal routing
• High-density PCB assemblies with limited vertical clearance

Headers, Male Pins Procurement Notes

Verify the specific contact finish and housing material against the official datasheet before integration. Confirm that the right-angle footprint matches the target PCB layout dimensions. Ensure compatibility with mating connectors regarding pin count and row configuration. Check for RoHS compliance requirements relevant to the end application environment.

Headers, Male Pins Selection Notes

Select this component when right-angle connectivity is required for a 14-pin interface. The 2mm pitch suits applications needing moderate density without excessive board space usage. Through-hole mounting is preferred over surface mount for higher mechanical stability. Verify that the operating temperature range meets the environmental conditions of the deployment site.

Headers, Male Pins Part Context

This part belongs to the M22 series, characterized by its 2mm pitch and modular design options. The series supports various pin counts and orientations, including straight and right-angle configurations. It is engineered for general-purpose electronics where reliable interconnection and durability are prioritized over high-speed signal integrity.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M22 series headers with identical 14-position, 2-row, right-angle specifications. Verify that any alternative maintains the same 2mm pitch and through-hole termination method to ensure mechanical and electrical compatibility.
