M22-2540946

Headers, Male Pins Overview

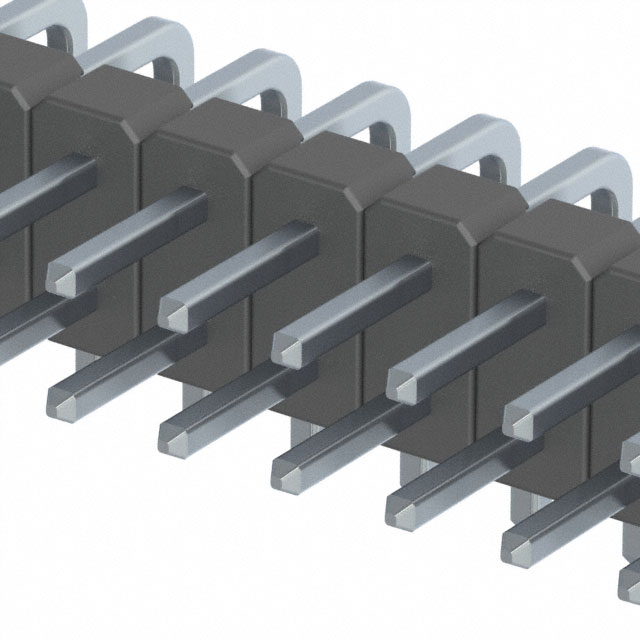

The Harwin M22-2540946 is a male pin header from the M22 series, designed for board-to-board connections. It features a 2mm pitch with a 9+9 double in-line configuration, totaling 18 positions across two rows. The connector utilizes phosphor bronze contacts with tin plating and is housed in nylon. It is configured as a horizontal header intended for through-hole solder termination.

Headers, Male Pins Feature Summary

• Double in-line design accommodating 18 contact positions
• Horizontal orientation for low-profile mounting
• Tin-plated phosphor bronze contacts for conductivity

Headers, Male Pins Applications

• Board-to-board interconnects
• Through-hole PCB assembly
• General electronic signal routing

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current production status. Check datasheets for RoHS compliance details and environmental ratings. Ensure compatibility with mating sockets regarding pin length and housing dimensions before procurement.

Headers, Male Pins Selection Notes

Select this component when a horizontal, double-row header with a 2mm pitch is required. Confirm that the tin plating meets the application's corrosion resistance needs. Verify that the through-hole installation method aligns with the manufacturing process and PCB layout constraints.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series of headers and wire housings. The series offers various configurations including vertical and right-angle options. The M22-2540946 specifically addresses the need for horizontal, double-in-line connectivity within this product family.

Headers, Male Pins Replacement Considerations

Consult Harwin's official cross-reference guides for verified substitutes. Ensure any replacement maintains the 2mm pitch, 18-position count, and horizontal form factor.
