M22-5331305

Headers, Male Pins Overview

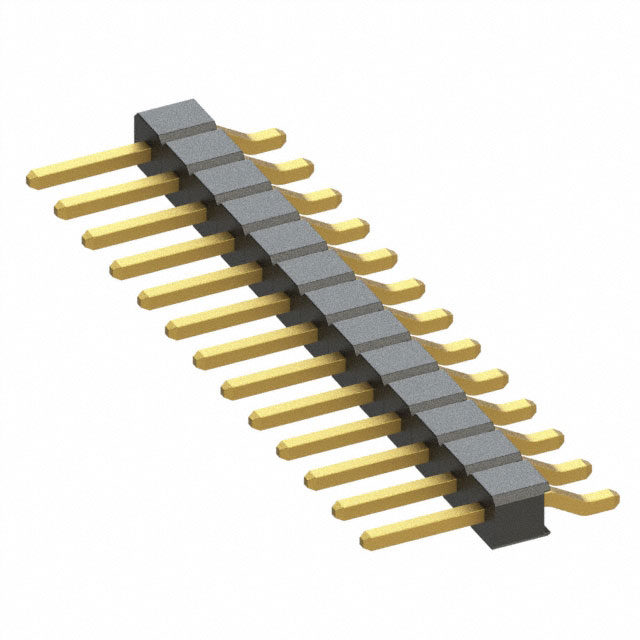

The M22-5331305 is a surface mount right-angle header connector from the Harwin M22 series. It features a 2.00 mm pitch and provides 13 positions in a single row configuration. The component utilizes gold-plated phosphor bronze contacts for reliable signal transmission. Designed for board-to-board applications, it offers a compact profile suitable for high-density PCB layouts.

Headers, Male Pins Feature Summary

• Surface mount right-angle design facilitates efficient space utilization on printed circuit boards.
• Gold-plated contacts ensure stable electrical performance and corrosion resistance.
• Single-row configuration supports straightforward routing and assembly processes.

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific pin count and orientation against project requirements before ordering. Confirm that the surface mount footprint matches the designated PCB layout. Ensure compatibility with standard reflow soldering profiles to maintain connection integrity during manufacturing.

Headers, Male Pins Selection Notes

Select this model when a low-profile, right-angle header is required for space-constrained designs. Consider the single-row format for simplified routing needs. Evaluate the thermal and mechanical stability of the housing material relative to the operating environment.

Headers, Male Pins Part Context

This component belongs to the M22 series, which is engineered for industrial standards. The series emphasizes compactness and reliability through precise manufacturing tolerances. It serves as a critical interconnect solution for modern electronics requiring robust physical connections.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the same M22 family with differing pin counts or orientations. Verify that alternative headers maintain identical pitch dimensions and contact plating specifications to ensure functional equivalence.
