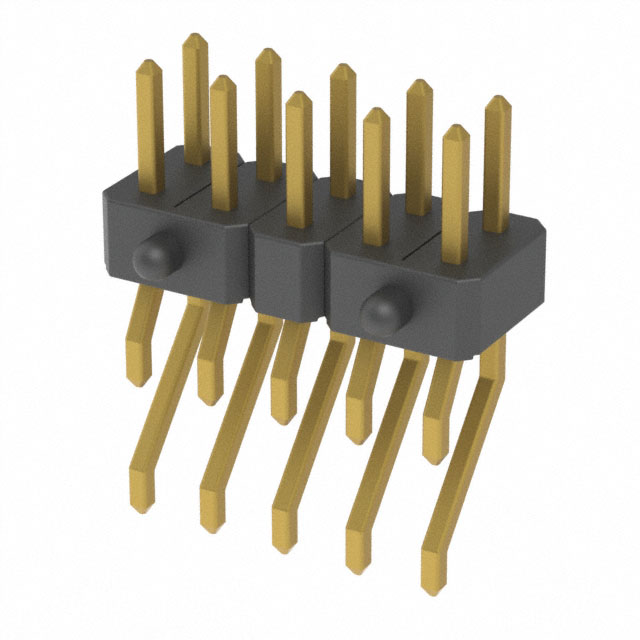

M22-5430505

$1.79

Description：CONN HEADER SMD R/A 10POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:d9cb6293951f Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：chipapex@foxmail.com
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-5430505 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD R/A 10POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-5430505

Description：CONN HEADER SMD R/A 10POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.126" (3.20mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.157" (4.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：Board Guide
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1.5A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-5430505

M22-5430505

Headers, Male Pins Overview

The M22-5430505 is a surface mount pin header from the Harwin M22 series, designed for board-to-board applications. It features a double row configuration with 10 positions (5+5) and a 2 mm pitch. The connector utilizes gold-plated contacts on a nylon housing, supporting vertical mating connections. Rated for 500V and operating within a temperature range of -40°C to +105°C, it employs a right-angle horizontal SMT termination style.

Headers, Male Pins Feature Summary

Double row layout with 5+5 contact arrangement
Surface mount termination for automated assembly
Gold-plated contacts for reliable electrical performance
Integrated location pegs for precise PCB alignment

Headers, Male Pins Applications

Board-to-board interconnections in compact electronics
High-density PCB layouts requiring surface mount headers
Industrial equipment with space-constrained designs

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS compliance status prior to integration. Ensure storage conditions maintain moisture sensitivity level integrity. Validate mechanical dimensions against target PCB footprint specifications before final procurement decisions.

Headers, Male Pins Selection Notes

Select this model for applications requiring high-density double-row connectivity via surface mount technology. The 2mm pitch accommodates standard board spacing while maximizing contact density. Verify that the horizontal orientation aligns with adjacent component clearance requirements and mating connector height constraints.

Headers, Male Pins Part Context

This component belongs to the M22 series, characterized by fine 2mm pitch connectors designed for industrial standards. The series offers various configurations including single and double rows, supporting both through-hole and surface mount installations. These connectors utilize durable materials to meet rigorous environmental and reliability demands.
