M22-5430705

Headers, Male Pins Overview

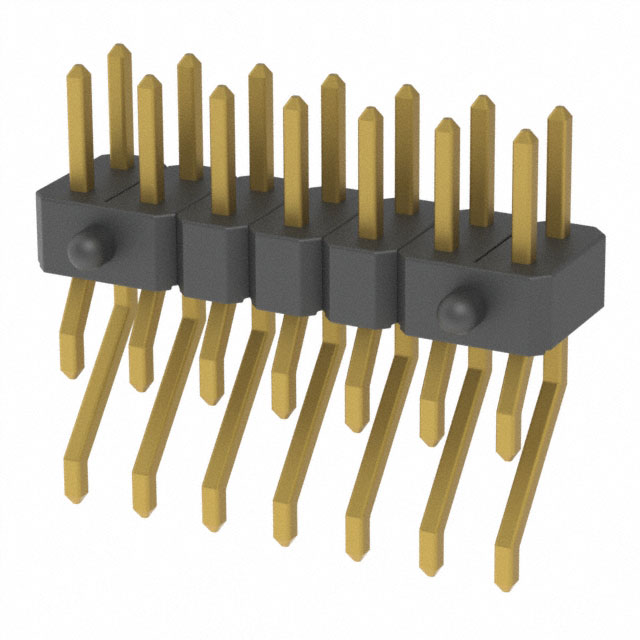

The M22-5430705 is a surface-mount pin header manufactured by Harwin Inc. It features a dual in-line configuration with 14 positions arranged in two rows of seven contacts each. The connector utilizes a 2.00 mm pitch and is designed for horizontal orientation on printed circuit boards. Contacts are gold-plated to ensure reliable electrical performance, while the housing provides structural integrity for high-density board-to-board applications.

Headers, Male Pins Feature Summary

• Surface-mount technology enables automated assembly processes
• Dual in-line layout supports compact multi-signal routing
• Gold contact plating enhances conductivity and corrosion resistance

Headers, Male Pins Applications

• High-density electronic assemblies requiring surface termination
• Board-to-board interconnects in compact industrial modules
• Automotive control units with space-constrained layouts

Headers, Male Pins Procurement Notes

Verify that the specific order matches the surface-mount variant rather than through-hole alternatives within the M22 series. Confirm the horizontal orientation requirement aligns with PCB silkscreen and component placement guidelines. Ensure compatibility with standard reflow soldering profiles specified for this component type.

Headers, Male Pins Selection Notes

Select this model when surface-mount capability is mandatory for the design. The dual-row format accommodates higher signal counts within limited footprint areas compared to single-row options. Evaluate thermal management requirements during reflow processes to maintain connection integrity.

Headers, Male Pins Part Context

This component belongs to the M22 series, which offers various pitch and configuration options for industrial connectivity. The M22-5430705 specifically addresses needs for horizontal surface-mount headers, distinguishing it from vertical or through-hole variants in the same product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M22 series surface-mount headers with identical 2.00 mm pitch and 14-position dual-row configurations. Verify mechanical height and terminal plating specifications before cross-referencing with alternative manufacturers.
