M50-3151542

Headers, Receptacles, Female Sockets Overview

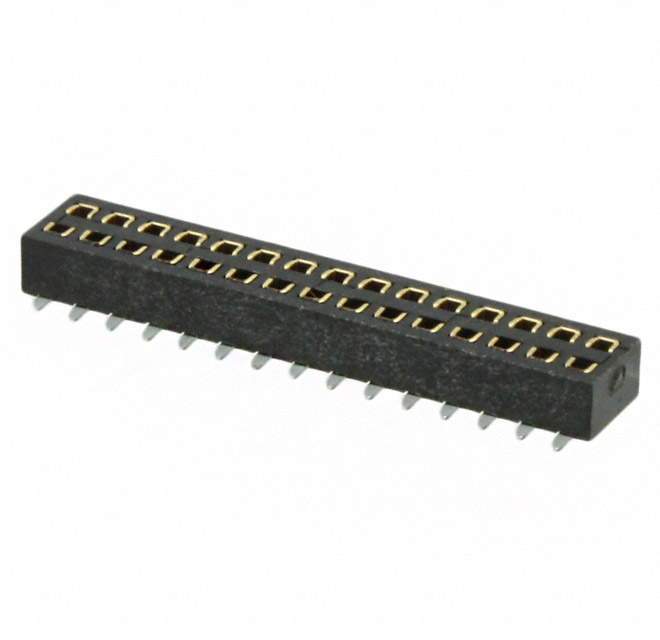

The M50-3151542 is a surface-mount socket connector from the Harwin Archer M50 series. It features a dual in-line configuration with 30 positions and a 1.27mm (0.050 inch) pitch. The connector utilizes gold-plated phosphor bronze contacts housed in black polybutylene terephthalate insulation. Rated for 1A current and 250V, it operates within a temperature range of -55°C to 105°C. The component meets UL94 V-0 flammability standards and employs a solder termination method for reliable PCB attachment.

Headers, Receptacles, Female Sockets Feature Summary

• Low-profile vertical surface-mount design for space-constrained applications
• Gold-plated phosphor bronze contacts ensure durable signal integrity
• Dual in-line layout facilitates organized board-to-board interconnection

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies requiring compact vertical headers
• Industrial control systems operating in extreme temperature environments
• Consumer electronics utilizing surface-mount technology for miniaturization

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and material specifications. Ensure compatibility with mating pin headers regarding pitch and row alignment. Cross-reference the component status to confirm availability before finalizing procurement plans.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, vertically oriented socket is required for SMT assembly processes. The 1.27mm pitch suits high-density layouts, while the gold finish supports frequent mating cycles. Confirm that the 30-position count aligns with circuit requirements and that the thermal rating matches the operational environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer M50 family, characterized by its 1.27mm pitch and robust construction. The series offers various configurations including shrouded and unshrouded options. The M50-3151542 specifically provides a 30-position socket variant optimized for vertical mounting on printed circuit boards.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Harwin M50 series sockets with identical 30-position counts and 1.27mm pitch. Verify mechanical footprint and electrical ratings match before swapping. Generic equivalents may lack the specific low-profile geometry or gold plating quality.
