M50-3201545

Headers, Receptacles, Female Sockets Overview

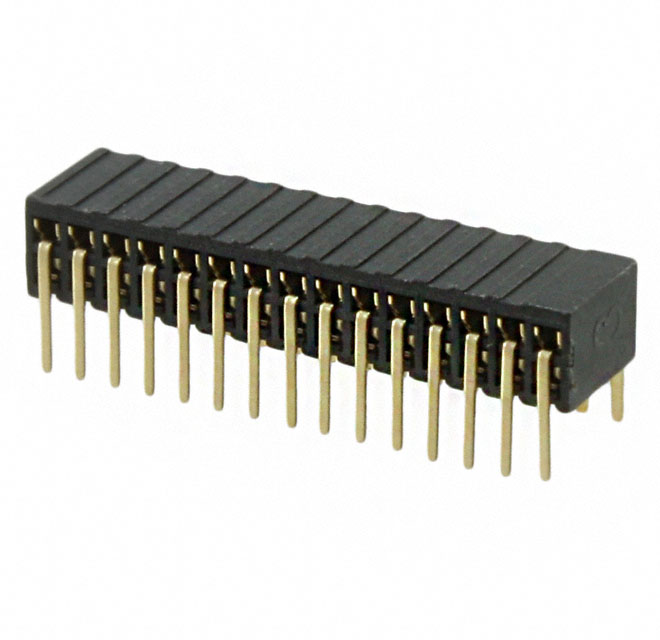

The Harwin M50-3201545 is a 30-position (15+15) double in-line receptacle connector from the Archer M50 series. It features a 1.27mm pitch and utilizes through-hole mounting with a right-angle orientation. The contacts are gold-plated to ensure reliable signal transmission, while the housing is constructed from black thermoplastic material. Designed for board-to-wire applications, this component supports a rated current of 1A and operates within a temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle through-hole design for compact PCB integration
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Double in-line configuration accommodating 30 positions

Headers, Receptacles, Female Sockets Applications

• Board-to-wire interconnections
• Industrial control systems
• Consumer electronics assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific suffix '45' corresponds to the required right-angle orientation and through-hole termination style. Confirm that the gold plating specification matches the application's environmental requirements. Ensure the 1.27mm pitch aligns with the target PCB footprint and mating connector specifications before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a right-angle female connector is required for high-density wiring. The 1.27mm pitch allows for compact layouts compared to larger spacing options. Consider the through-hole mounting method if surface mount alternatives are unsuitable for the mechanical stress profile of the assembly.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Archer M50 series, which provides a comprehensive range of interconnect solutions. The series is characterized by its consistent 1.27mm pitch across various form factors, including headers, sockets, and cable assemblies, facilitating standardized design processes across different product lines.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must maintain the 1.27mm pitch, 30-position count, right-angle orientation, and through-hole termination. Verify compatibility with mating male pins regarding contact geometry and housing dimensions.
