M50-3530242

Headers, Male Pins Overview

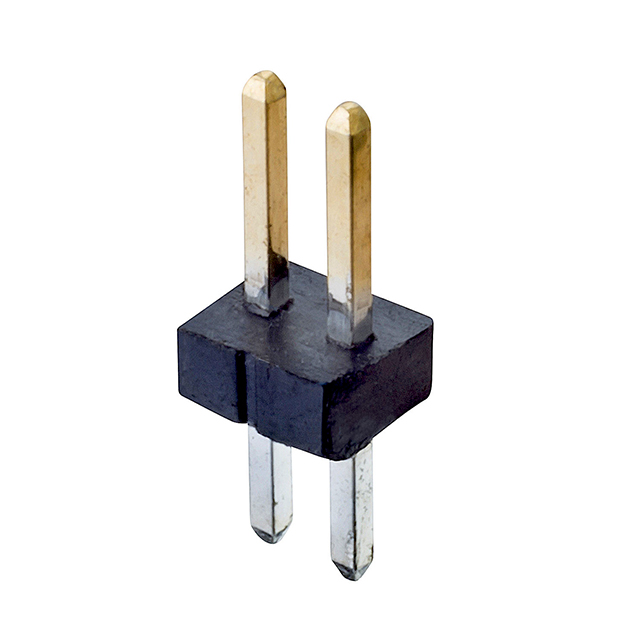

The Harwin M50-3530242 is a vertical pin header from the Archer M50 series, featuring a 1.27 mm pitch and two contacts in a single row. Designed for through-hole mounting, it utilizes PC tail termination for secure PCB attachment. The connector operates within a temperature range of -40°C to 105°C and supports a rated current of 1A per contact. Constructed with brass contacts and polyamide insulation, it offers reliable performance for board-to-wire applications.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates compact board integration
• Through-hole termination ensures robust mechanical stability
• Single row configuration simplifies wiring layouts

Headers, Male Pins Applications

• Board-to-wire interconnections
• General electronic equipment assembly
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm compatibility with your design requirements. Ensure that the vertical orientation and through-hole termination method align with your PCB layout constraints. Cross-reference technical specifications such as pitch and current rating before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header is required for through-hole assembly. Consider the 1.27 mm pitch and 1A current rating to ensure compatibility with mating connectors and circuit demands. Verify that the operating temperature range meets environmental conditions.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M50 series, known for its high-density interconnect solutions. The series provides various configurations including IDC and SMD options, catering to diverse connectivity needs in modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

M50-3530242R
