M50-3600542R

Headers, Male Pins Overview

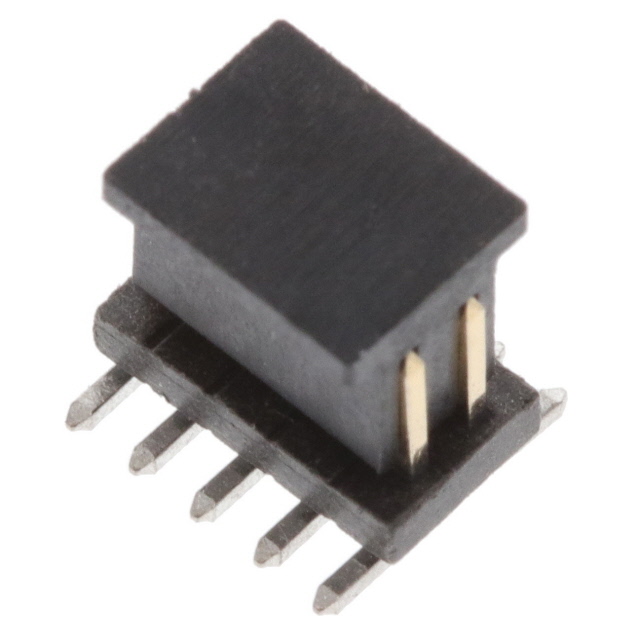

The Harwin M50-3600542R is a 10-position, double-row male header from the Archer M50 series. It features a 1.27 mm pitch and is designed for surface mount technology (SMT) with straight orientation. The connector utilizes gold-plated copper alloy contacts housed in nylon, supporting board-to-board and wire-to-board applications. Rated for 1A current and 1kV voltage, it operates within a temperature range of -40°C to +105°C. The unit includes a tail pin length of 2.3mm and mates with pins of 3mm length.

Headers, Male Pins Feature Summary

• Double-row design for high-density interconnects
• Gold-plated contacts for reliable signal transmission
• Surface mount termination for automated assembly

Headers, Male Pins Applications

• Board-to-board connections
• Wire-to-board assemblies
• High-density electronic modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' indicates tape and reel packaging when sourcing. Confirm that the 1kV rating applies to the specific configuration required for your application. Ensure compatibility with mating connectors having a 3mm pin length. Check for RoHS compliance documentation if environmental regulations are mandatory for your project.

Headers, Male Pins Selection Notes

Select this component for applications requiring a low-profile, double-row interface with a 1.27 mm pitch. It is suitable for SMT processes where straight mounting is preferred over right-angle configurations. Consider the 1A current rating and nylon housing material for general-purpose industrial or consumer electronics environments.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M50 series, which specializes in 1.27 mm pitch PCB connectors. The series offers various row counts and orientations, providing flexibility for dense circuit layouts. The M50-3600542R specifically addresses needs for compact, reliable vertical interconnections in space-constrained designs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M50 series headers with identical 10-position, double-row specifications. Verify that any alternative maintains the same 1.27 mm pitch and SMT termination style to ensure mechanical and electrical compatibility.
