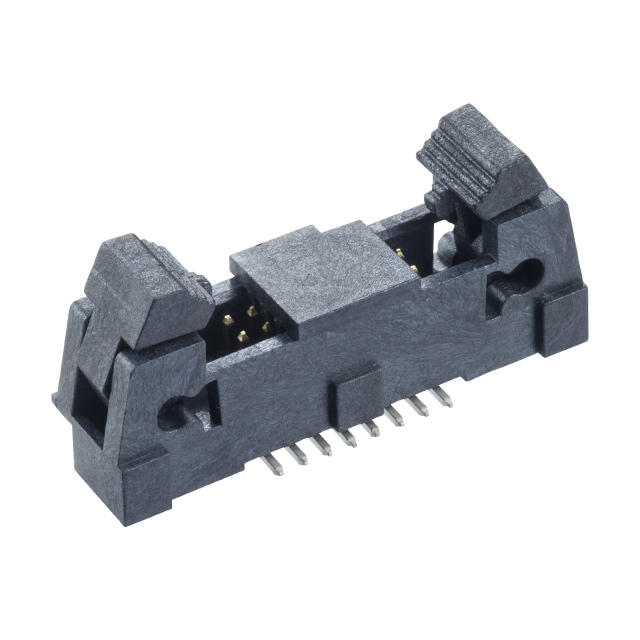

M50-3650842R

$3.14

Description：CONN HEADER SMD 16POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:98eed8d8ada0 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3650842R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 16POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3650842R

Description：CONN HEADER SMD 16POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Lock/Eject Hooks
Contact Length - Mating：0.120" (3.05mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.325" (8.25mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
Features：Board Lock, Keying Slot, Pick and Place
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1.75A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3650842R

M50-3650842R

Headers, Male Pins Overview

The M50-3650842R is a surface mount header from the Harwin Archer M50 series, featuring 16 positions in a double-row configuration with a 1.27mm pitch. It utilizes male pin contacts made of brass with gold plating on the mating interface and tin on the post. The connector supports a current rating of 1.75A per contact and operates within a temperature range of -55°C to +125°C. Designed for wire-to-board applications, it includes an integrated ejector mechanism for secure assembly and removal.

Headers, Male Pins Feature Summary

Integrated ejector mechanism facilitates reliable board attachment and component retrieval
Surface mount termination ensures stable placement on printed circuit boards
Gold-plated mating contacts provide durable electrical conductivity

Headers, Male Pins Applications

Wire-to-board interconnections
Board-to-board stacking assemblies
High-density electronic module integration

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 16-position double-row configuration and SMT termination type. Confirm compatibility with automated pick-and-place equipment due to the reel packaging format. Ensure the ejector feature aligns with the mechanical design requirements for board retention and removal processes.

Headers, Male Pins Selection Notes

Select this component when a compact 1.27mm pitch header with an integrated ejector is required for surface mount applications. Consider the 1.75A current rating and thermal stability up to 125°C for suitability in demanding environments. Evaluate the need for male pins and shrouded design against mating connector specifications.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M50 series, which specializes in high-density interconnect solutions. The series offers various configurations including IDC and standard headers, all sharing the 1.27mm pitch architecture. The M50-3650842R specifically addresses needs for secure, automated assembly through its ejector design.
