M50-3930542

$0.32

Description：CONN HEADER R/A 5POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Box

SKU:2436ced22698 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3930542 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 5POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3930542

Description：CONN HEADER R/A 5POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Box
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA9T), Nylon 9T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3930542

M50-3930542

Headers, Male Pins Overview

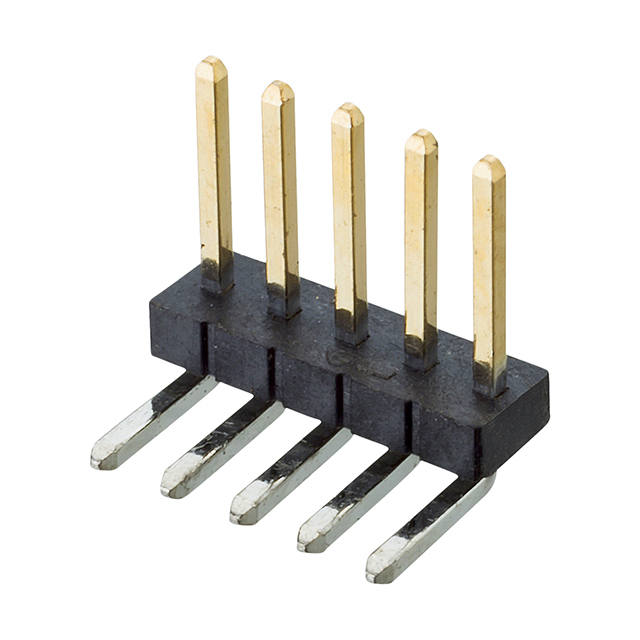

The Harwin M50-3930542 is a single-row male pin header from the Archer M50 series, featuring five positions with a 1.27 mm pitch. Designed for through-hole right-angle mounting, it utilizes gold-plated brass contacts and a black polyamide housing. The component supports a maximum current rating of 1 A and operates within a temperature range of -40°C to +105°C. It offers an insulation resistance of 1 GOhms and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Right-angle through-hole mounting configuration for space-efficient board connections
Gold-plated brass contacts ensure reliable signal transmission and corrosion resistance
Polyamide housing provides structural integrity and UL 94 V-0 flame retardancy

Headers, Male Pins Applications

Board-to-board interconnections in compact electronic assemblies
Cable-to-board wiring harnesses requiring right-angle termination
General-purpose signal routing in industrial control modules

Headers, Male Pins Procurement Notes

Verify RoHS compliance status via official manufacturer documentation prior to integration. Confirm that the specific ordering suffix matches the required contact plating and housing material specifications. Ensure procurement channels source directly from authorized distributors to guarantee authenticity and traceability of the component batch.

Headers, Male Pins Selection Notes

Select this part when a low-profile, right-angle connection is required for 1.27 mm pitch applications. The single-row design suits density-constrained layouts where vertical clearance is limited. Verify that the 1 A current rating aligns with the circuit requirements and that the operating temperature range covers the environmental conditions of the final assembly.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M50 series, which specializes in high-density interconnect solutions. The series includes complementary jumper sockets and shunts designed specifically for the 1.27 mm pitch architecture. The M50-3930542 serves as a fundamental building block for modular connector systems in embedded electronics.
