M50-4301545

Headers, Receptacles, Female Sockets Overview

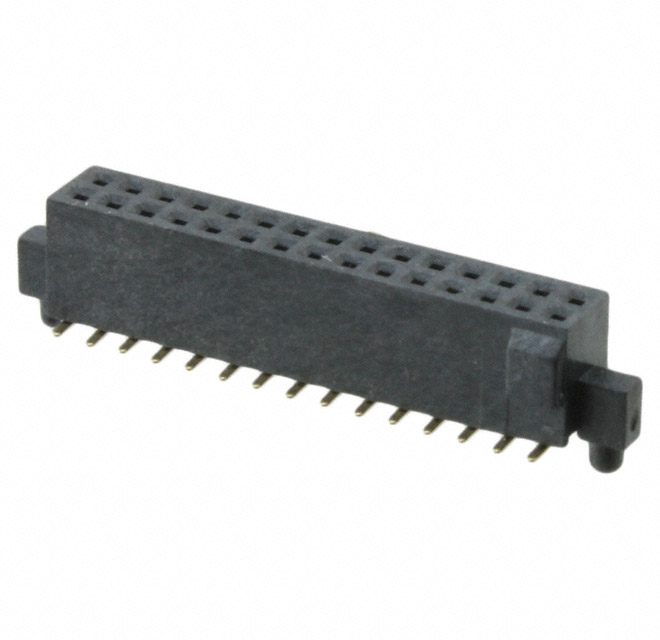

The Harwin M50-4301545 is a rectangular connector from the Archer M50 series, classified as a header and wire housing receptacle. It features a dual in-line (DIL) configuration with 15+15 positions, totaling 30 contacts. The component utilizes a 1.27 mm pitch for both pin spacing and row spacing. Designed for surface mount technology (SMT), it offers vertical orientation for board-to-board connections. The contacts are gold-plated sockets, ensuring reliable signal transmission. The unit operates within a temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Dual in-line socket assembly designed for high-density interconnects
• Surface mount termination method ensures secure PCB attachment
• Gold contact plating provides corrosion resistance and conductivity

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in compact electronic modules
• High-density signal routing in telecommunications equipment
• Industrial control systems requiring robust SMT headers

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against the manufacturer's official datasheet to confirm exact pin count and termination style. Ensure compatibility with standard SMT reflow profiles. Confirm RoHS compliance status through current documentation. Cross-reference the part number with authorized distributors to avoid counterfeit components. Validate mechanical dimensions against the target PCB footprint before final procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-density connection is required for surface-mounted assemblies. The 1.27 mm pitch allows for significant I/O density within limited board areas. Consider the vertical orientation for stacking applications or direct mating with corresponding male headers. Evaluate thermal requirements against the specified operating temperature range. Ensure the chosen mating connector matches the DIL configuration and contact type.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer M50 series by Harwin Inc., a line of rectangular connectors known for reliability in demanding environments. The series supports various configurations including headers, sockets, and housings. The M50-4301545 specifically addresses needs for small-form-factor electronics requiring durable surface-mount solutions with consistent electrical performance across wide temperature ranges.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available.
