M50-4302545

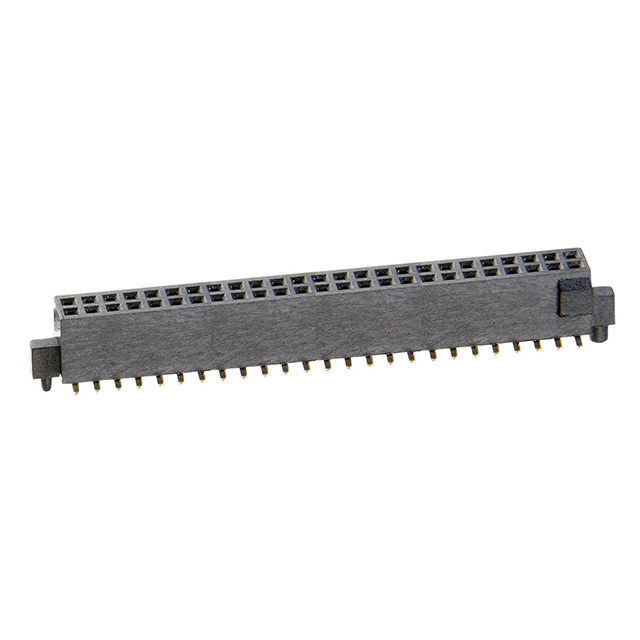

Headers, Receptacles, Female Sockets Overview

The Harwin M50-4302545 is a surface-mount socket connector from the Archer M50 series. It features a dual-row configuration with 50 positions and a 1.27mm pin pitch. The contacts are gold-plated phosphor bronze, rated for 1A current. Designed for SMT installation, it operates between -40°C and +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount receptacle design for automated PCB assembly
• Gold-plated contacts ensure reliable signal transmission
• Dual-row architecture supports high-density interconnects

Headers, Receptacles, Female Sockets Applications

• High-density board-to-board connections
• Automated surface-mount electronics manufacturing
• Compact consumer electronic device assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm the exact contact count and row configuration. Ensure compatibility with mating headers within the same 1.27mm pitch series. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, surface-mount female connector is required for dense circuit layouts. The 1.27mm pitch allows for significant I/O density in limited space. Verify that the mating header matches the dual-row specification and mounting style requirements of the target application.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Archer M50 family, which specializes in compact, high-reliability interconnect solutions. The series utilizes precise engineering to maintain alignment during surface-mount reflow processes, ensuring consistent electrical performance across various industrial and commercial applications.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other Harwin Archer M50 series sockets with matching 1.27mm pitch and dual-row configurations. Ensure any replacement maintains identical pin counts and surface-mount termination types for direct interchangeability.
