M50-4302645

Headers, Receptacles, Female Sockets Overview

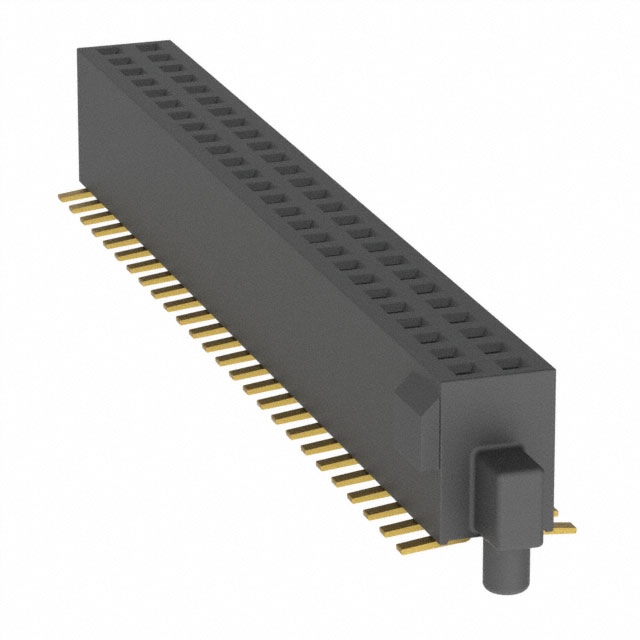

The Harwin M50-4302645 is a surface-mount board-to-board receptacle from the Archer M50 series. It features a dual-row configuration with 52 positions and a 1.27mm pitch. The connector utilizes gold-plated contacts for reliable signal transmission. Designed for high-density applications, it offers a compact profile suitable for modern electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row edge-type receptacle design
• Surface-mount technology installation
• Gold-plated contact finish

Headers, Receptacles, Female Sockets Applications

• Compact electronic assemblies
• High-density board-to-board interconnects
• Consumer electronics modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm availability and current status. Ensure compatibility with mating headers within the same series. Check for any recent updates to the datasheet regarding environmental compliance or mechanical specifications before finalizing procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring high-density connections in limited space. The 1.27mm pitch allows for significant I/O density. Consider the surface-mount requirement during PCB layout. Verify that the mating header matches the row count and pin configuration to ensure proper assembly and electrical continuity.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Archer M50 series by Harwin Inc., designed for board-to-board connectivity. The series is known for its compact size and reliability in dense electronic environments. This specific model represents a receptacle variant optimized for surface mounting on printed circuit boards.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Harwin documentation for confirmed substitute part numbers. Generic alternatives may not match the precise mechanical dimensions or contact specifications required for reliable operation in high-density designs.
