M50-4703445

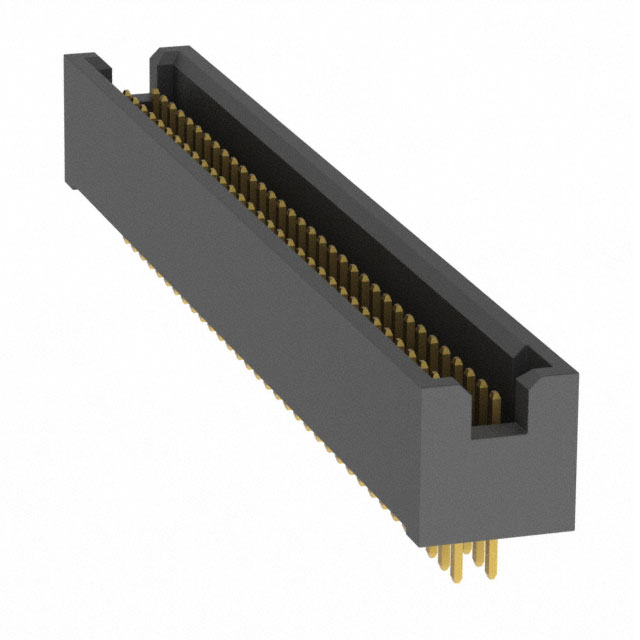

Description：CONN HEADER VERT 68POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:b92f17cdff7a Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4703445 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 68POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4703445

Description：CONN HEADER VERT 68POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：68
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4703445

M50-4703445

Headers, Male Pins Overview

The M50-4703445 is a vertical board-to-board connector header manufactured by Harwin Inc. It belongs to the Archer M50 series and features a 1.27 mm pitch with a 68-position configuration. The component utilizes brass contacts with gold plating and is designed for surface mount or through-hole termination depending on the specific tail variant, though typically associated with standard pin headers in this series.

Headers, Male Pins Feature Summary

Vertical orientation design for space-efficient PCB integration
Gold-plated brass contacts ensure reliable signal transmission
Shrouded housing structure provides alignment and protection

Headers, Male Pins Applications

High-density interconnects in compact electronic modules
Industrial control system circuit boards
Communication equipment internal connections

Headers, Male Pins Procurement Notes

Verify the exact termination style and contact count against the official datasheet before ordering. Confirm RoHS compliance status and packaging specifications directly with the manufacturer or authorized distributors to ensure supply chain accuracy and regulatory adherence.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count vertical header with fine 1.27mm pitch is required. Ensure mating receptacles match the specific row configuration and shroud design. Validate thermal and current ratings against the application's operational requirements.

Headers, Male Pins Part Context

This part is part of Harwin's Archer M50 family, known for robust performance in demanding environments. The series offers various configurations to support diverse board-to-board connectivity needs across multiple industries.
