M50-4800745

Headers, Male Pins Overview

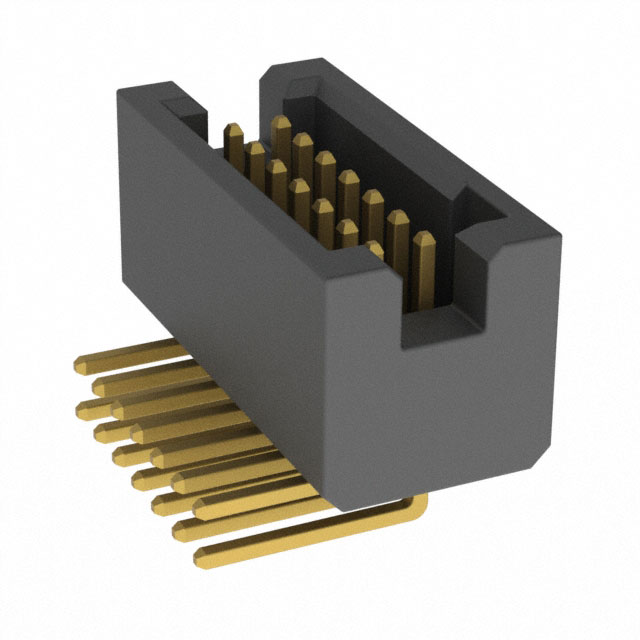

The Harwin M50-4800745 is a 14-position male pin header from the Archer M50 series, featuring a 1.27 mm pitch and shrouded design. It utilizes through-hole right-angle termination for board-to-board or wire-to-board connections. The contacts are gold-plated brass, rated for 1 A current and 300 V voltage. Operating temperature ranges from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Shrouded housing design provides alignment and protection for mating connectors.
• Right-angle through-hole mounting facilitates compact vertical circuit board integration.
• Gold-plated brass contacts ensure reliable conductivity and corrosion resistance.

Headers, Male Pins Applications

• Board-to-board interconnections in dense electronic assemblies
• Wire-to-board connections requiring right-angle orientation
• Industrial control modules with limited vertical space

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm right-angle orientation and shroud presence. Ensure compatibility with mating socket heights within the Archer M50 range. Confirm RoHS compliance status via the manufacturer datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component when right-angle through-hole mounting is required for 1.27 mm pitch applications. Consider the shrouded design for improved mating accuracy. Verify that the 1 A current rating and 300 V voltage limits meet the system requirements.

Headers, Male Pins Part Context

Part of the Archer M50 series, offering various mating heights and configurations. Designed for high-reliability connections in demanding environments. Compatible with other M50 series sockets and headers.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Harwin directly for equivalent alternatives if this part is obsolete or unavailable.
