M50-4801245

Headers, Male Pins Overview

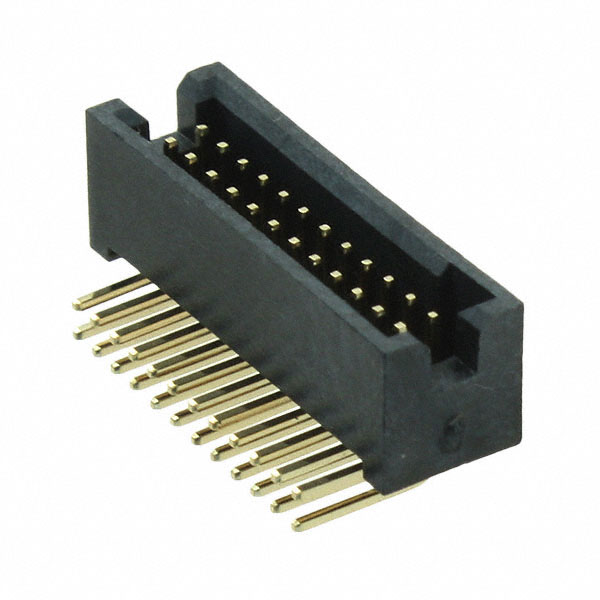

The Harwin M50-4801245 is a shrouded male header connector from the Archer M50 series, designed for right-angle through-hole mounting. It features 24 positions arranged in a dual inline configuration with a 1.27 mm pitch. The contacts are gold-plated copper alloy pins with a solder tail termination style. Rated for 1 A current and 300 V voltage, the housing utilizes black liquid crystal polymer (LCP) material compliant with UL 94 V-0 flammability standards. Operating temperatures range from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for space-efficient PCB integration
• Shrouded structure provides mechanical stability and pin alignment
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-density electronic assemblies requiring right-angle routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm exact contact count, pitch, and termination type. Ensure compatibility with mating sockets within the same M50 series family. Confirm RoHS compliance status and packaging quantities prior to order placement.

Headers, Male Pins Selection Notes

Select this component when right-angle through-hole installation is required for high-density layouts. The 1.27 mm pitch supports compact designs while maintaining electrical integrity. Verify that the PCB footprint matches the specified dimensions and that the operating temperature range meets application requirements.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M50 series, which offers a comprehensive range of 1.27 mm pitch connectors. The series includes various configurations such as surface mount, through-hole, straight, and right-angle options. The M50-4801245 specifically addresses needs for robust, high-reliability interconnects in demanding environments.

Headers, Male Pins Replacement Considerations

Direct substitutes include other M50 series headers with identical 24-position, right-angle, through-hole specifications. Cross-reference part numbers like M50-4801242 or similar variants only if they match the exact pin count and orientation. Generic replacements may lack the precise shrouding or material properties.
