M50-4802945

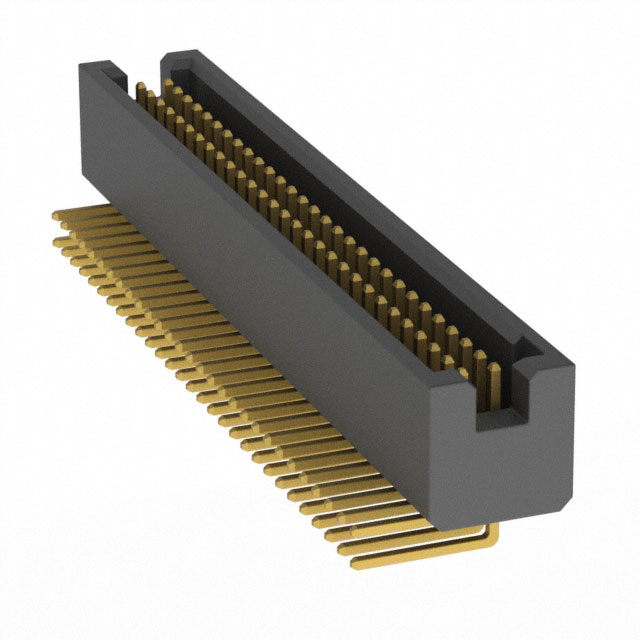

Description：CONN HEADER R/A 58POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:045eac619d83 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4802945 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 58POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4802945

Description：CONN HEADER R/A 58POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：58
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.083" (2.11mm)
Overall Contact Length：-
Insulation Height：0.222" (5.65mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4802945

M50-4802945

Headers, Male Pins Overview

The Harwin M50-4802945 is a 60-position, dual in-line (DIL) socket assembly from the ARCHER series. It features a 1.27 mm pitch and two rows of contacts. The component utilizes gold-plated copper alloy sockets for reliable signal transmission. Designed for right-angle mounting, it employs solder pin termination for secure PCB attachment. The housing is constructed from black liquid crystal polymer (LCP), offering high thermal stability and UL 94 V-0 flammability rating. Rated for 300 V and 1 A per contact, it operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Right-angle DIL socket configuration for space-efficient board-to-board connections
Gold-plated copper alloy contacts ensure durable electrical performance
High-temperature LCP housing provides structural integrity and flame resistance

Headers, Male Pins Applications

Compact electronic assemblies requiring dense interconnects
Industrial equipment with high thermal operating environments
Consumer electronics utilizing surface-mount or through-hole hybrid designs

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact pin count and orientation. Ensure compatibility with mating male headers from the same ARCHER series. Check RoHS compliance status via the manufacturer datasheet before integration into regulated products.

Headers, Male Pins Selection Notes

Select this part for applications demanding right-angle connectivity with high current capacity. The 1.27 mm pitch allows for higher density compared to standard 2.54 mm connectors. Consider the 300 V rating for power distribution lines alongside signal paths.

Headers, Male Pins Part Context

This component belongs to the Harwin ARCHER M50 series, known for fine-pitch reliability. It complements other M50 headers like the M50-4802545 but offers a different position count. The series supports various termination styles including SMT and through-hole options.
