M50-4803145

Headers, Male Pins Overview

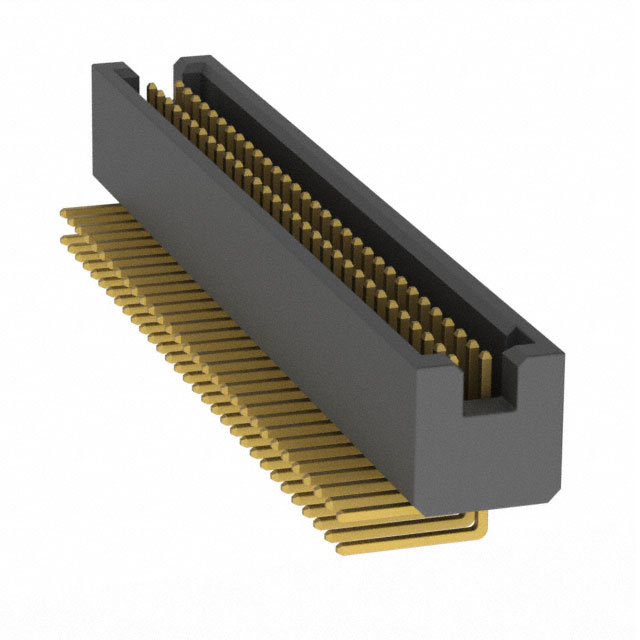

The M50-4803145 is a right-angle header connector from the Harwin Archer M50 series. It features a 62-position configuration with a 1.27 mm pitch across two rows. The component utilizes gold-plated contacts and is designed for surface-mount or through-hole termination, offering reliable board-to-board or wire-to-board interconnections in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle design facilitates dense vertical mounting configurations
• Gold-plated contacts ensure stable signal transmission
• Shrouded housing provides pin protection and alignment

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Wire-to-board connections in compact modules
• Industrial control system backplanes

Headers, Male Pins Procurement Notes

Verify the specific termination style and contact plating thickness against project requirements before ordering. Confirm that the right-angle orientation matches the PCB layout constraints. Ensure compatibility with mating connectors within the same M50 series family to guarantee proper mechanical engagement and electrical performance.

Headers, Male Pins Selection Notes

Select this component when high I/O density is required in a limited vertical space. The 1.27 mm pitch allows for numerous connections without excessive board area usage. Consider the right-angle form factor for efficient stacking or edge-connecting applications where standard vertical headers are unsuitable.

Headers, Male Pins Part Context

This part belongs to the Archer M50 series, known for robust performance in demanding environments. The series offers various position counts and termination options. The M50-4803145 specifically addresses needs for high-pin-count right-angle headers with precise spacing.

Headers, Male Pins Replacement Considerations

Direct substitutes include other M50 series right-angle headers with matching 1.27 mm pitch and 62 positions. Verify identical shrouding and contact material specifications to maintain interface integrity.
