M50-4900545

Headers, Male Pins Overview

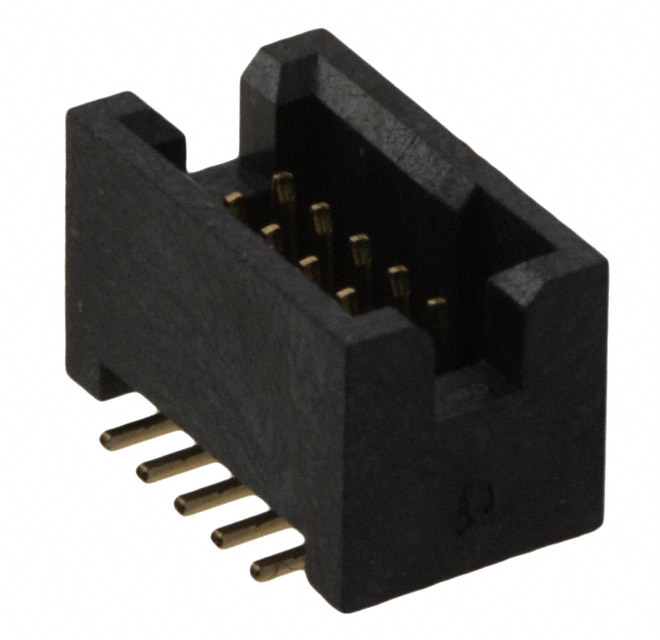

The Harwin M50-4900545 is a 1.27 mm pitch dual in-line surface mount pin header assembly from the Archer M50 series. It features 10 positions arranged in two rows with vertical orientation. The connector utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Designed for board-to-board and wire-to-board applications, it operates within a temperature range of -40°C to +105°C and supports a current rating of 1 A.

Headers, Male Pins Feature Summary

• Surface mount installation for automated PCB assembly
• Gold-plated phosphor bronze contacts ensure durability
• Vertical shrouded design provides mechanical stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number M50-4900545 against official Harwin documentation to confirm surface mount configuration and contact count. Ensure compatibility with mating sockets within the Archer M50 series. Check for RoHS compliance status and verify that the gold plating specification meets the required environmental conditions for the intended application.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount solution is required for high-density interconnects. The 1.27 mm pitch allows for compact circuit board layouts. Consider the vertical orientation and shrouded housing for alignment assistance during assembly. Ensure the operating temperature range of -40°C to +105°C aligns with the system's thermal requirements.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M50 series, which specializes in 1.27 mm pitch connectors. The series offers various configurations including through-hole and surface mount options. The M50-4900545 specifically addresses the need for reliable, space-saving interconnects in modern electronics where surface mounting is preferred for manufacturing efficiency.

Headers, Male Pins Replacement Considerations

Consult official Harwin documentation for verified substitute part numbers. Cross-reference specifications such as pitch, row count, and termination type to ensure functional equivalence.
