M50-4900745

Headers, Male Pins Overview

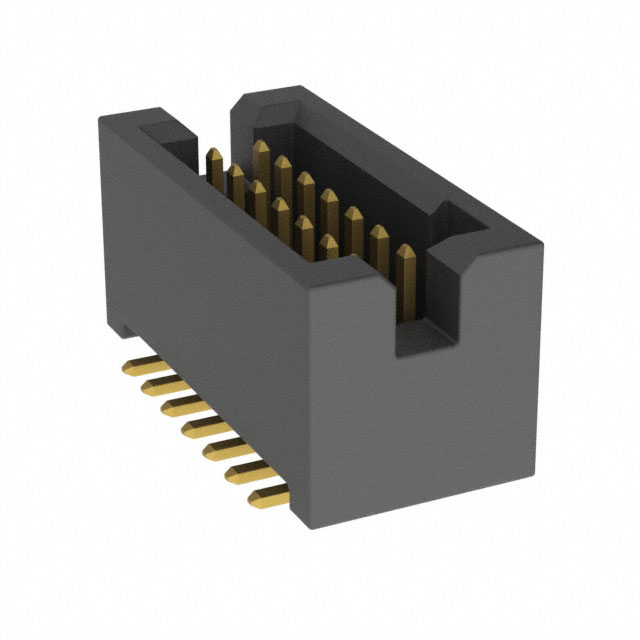

The Harwin M50-4900745 is a surface-mount shrouded header from the Archer M50 series. It features a 1.27 mm pitch and 14 positions in a dual-in-line configuration. The connector utilizes gold-plated brass contacts with a straight mounting angle. Rated for 300 V and 1 A, it operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Shrouded design provides alignment and protection during assembly
• Gold plating ensures reliable signal transmission
• Surface-mount termination facilitates automated PCB placement

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official datasheets to confirm pin count and row configuration. Ensure compatibility with mating sockets regarding height specifications. Confirm RoHS compliance status through manufacturer documentation prior to integration into regulated environments.

Headers, Male Pins Selection Notes

Select this component for applications requiring precise 1.27 mm spacing and robust surface-mount reliability. Consider the shrouded structure for improved mechanical stability. Evaluate thermal limits against operational requirements to ensure performance within the specified temperature range.

Headers, Male Pins Part Context

This part belongs to the Archer M50 family, designed for high-reliability board-to-board connections. The series offers various mating heights and configurations, supporting diverse industrial and commercial electronics applications requiring compact and durable interconnect solutions.

Headers, Male Pins Replacement Considerations

M50-4900645 is identified as an obsolete substitute option sharing key parameters like pitch and row spacing.
